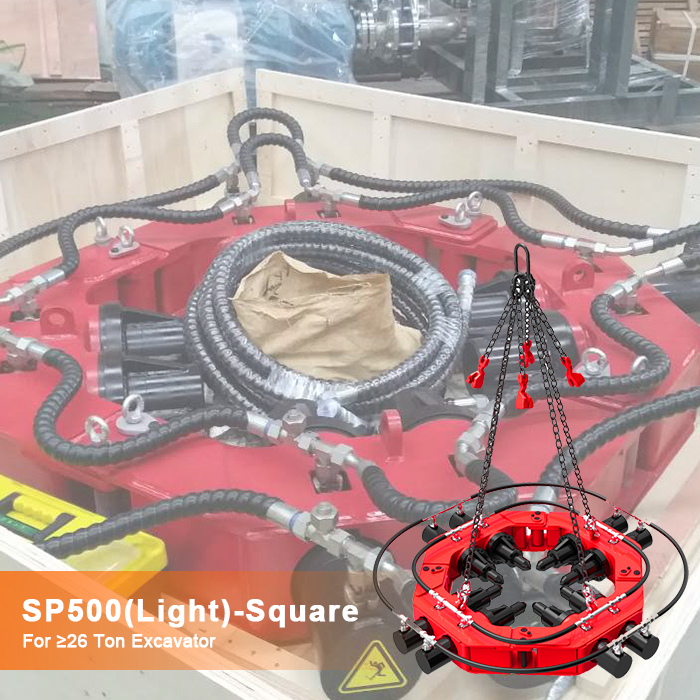

SP500
RAY Attachments
| Your problems | How can we solve it? |
| Dangerous | 1. Contact-free operation is enabled. |
| 2. And it imposes no impact force on the parent body of the pile and no influence on the bearing capacity of the pile. | |
| Slowly | 1.Replaceable and changeable module combination makes its applicable for piles with various diameters. |
| 2.The modules can be assembled and disassembled easily and conveniently. | |
| Noisy | Its full hydraulic drive causes little noises during operation and no influence on the surrounding environments |
| Expensive salary | 1.Fewer operating workers are required to save cost for labor and machines maintenance during construction. |
| 2.Suitable for different kinds of carrier. | |
| 3.Module generalization is realized with our SP380 and SP400-B square pile machine. It can be used for both circular piles and square piles by changing the module combination | |

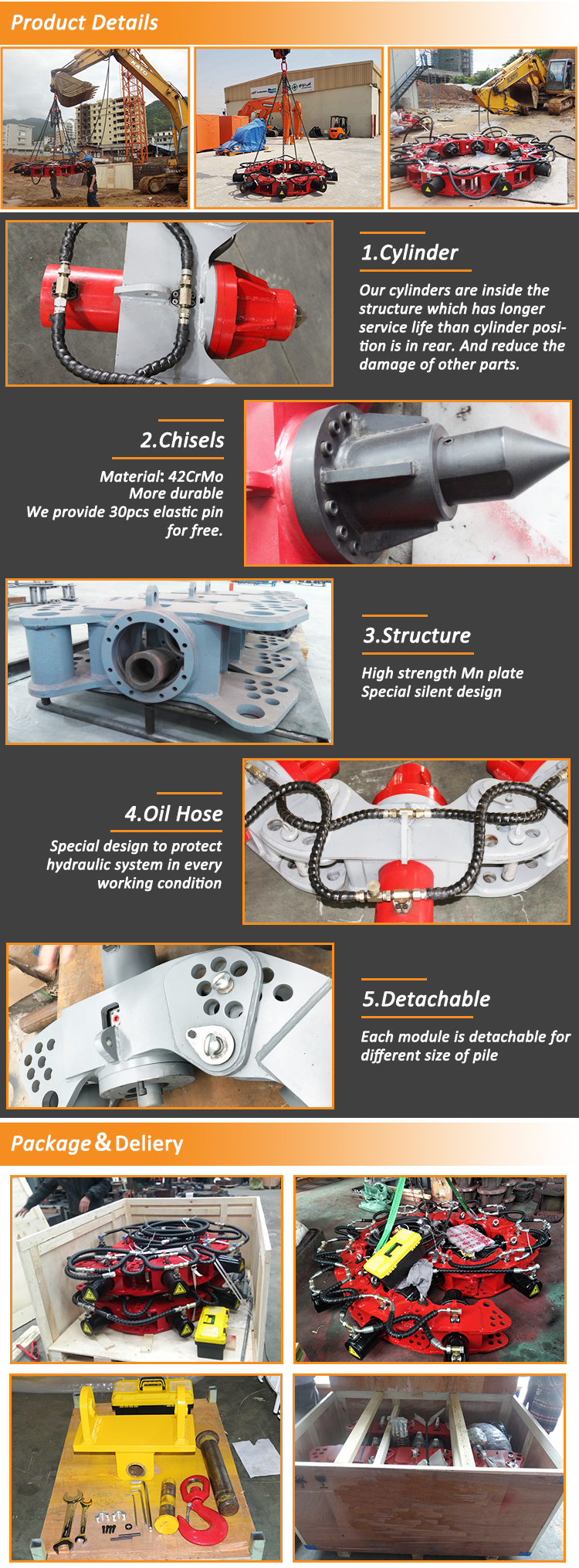

| Durable? | 1. It is made of military material by first-class suppliers with reliable quality, extending its service life. |
| 2.The mainboard used Q345B and the chisel used the 42Crmo. | |
| 3.12 month after-sales service. | |
| 4.Provide 50 spring pins for free. | |
| 5.Professional small tools for free. |
| Model | Unit | SP400 (Light) | SP500 (Light) | SP600 (Heavy) | SP600-8 (Heavy) |
| Range of pile breaker | mm | 300-400 | 400-500 | 300-550 | 600-800 |
| Max force for single rod | KN | 320 | 320 | 790 | 790 |
| Max stroke of hydraulic cylinder | mm | 150 | 150 | 205 | 205 |
| Pressure of hydraulic cylinder | Mpa | 34.3 | 34.3 | 34.3 | 34.3 |
| Max flow for single cylinder | L/min | 25 | 25 | 25 | 25 |
| Max height for each crush | mm | ≤300 | ≤300 | ≤300 | ≤300 |
| Suitable carrier | T | ≥8 | ≥15 | ≥20 | ≥26 |
| Single moulde weight | kg | 110 | 220 | 400 | 700 |
| Single module size | mm | 604*594*286 | 595*980*275 | 910*780*400 | 908×780×400 |
| Dimensions at working | mm | 1600*1600*2000 | 1710*1710*2500 | 2050*2050*2000 | 2400*2400*2500 |
| Total pile breaker weight | kg | 650 | 950 | 2000 | 3200 |
Wooden Box.
Deliery in 8 days after payment.
