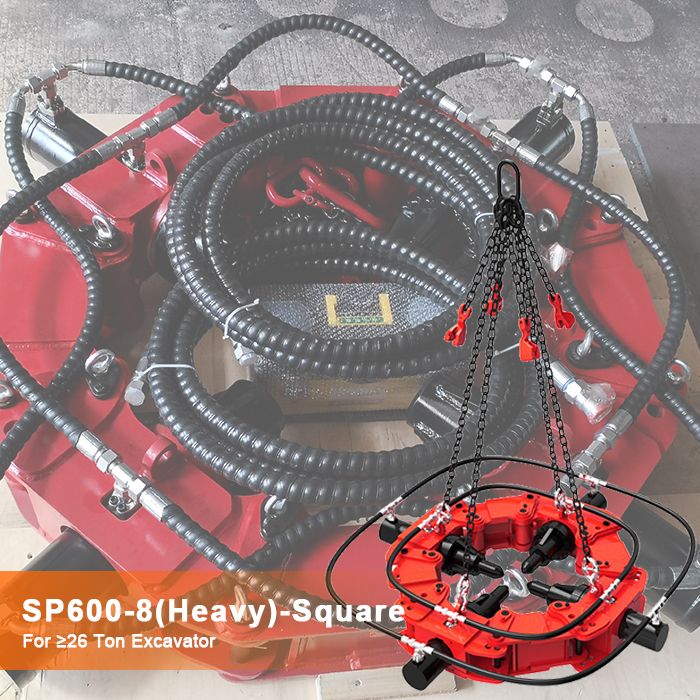

SP600-8 Hydraulic Concrete Round Cutting Breaker Oile Machine for Excavator

Pile breaker Pile Dia:750~1800mm
  • SP600-8

  • RAY Attachments


The effect-of-the-pile-breaker

The efficiency of our pile breaker is really high, for example, to cut 1000mm diameter & 1m length pile, concrete label C30, with 25T excavator, you can use our SP800 model with 8 modules, continuous work 8 hours can cut 30 piles in a day, but a worker can only cut 2-3 piles within 8 hours.

pile breaker machine for sale

SP600-8 Excavator Pile Breaker Machine Product Description

  1. The efficiency of RAY pile breaker is really high.

  2. Cylinder position: We make a cylinder in front position, the force point is on the flange and the module, balance the force, protect the cylinder, and have a longer service life.

  3. Chisels: stronger penetration and low noise.

  4. Chain: our chain uses a lifting chain (level 80).

  5. Tubing: tubing arrangement is more reasonable to prevent damage.


Your problems How can we solve it?
Dangerous 1. Contact-free operation is enabled.
2. And it imposes no impact force on the parent body of the pile and no influence on the bearing capacity of the pile.
Slowly 1.Replaceable and changeable module combination makes its applicable for piles with various diameters.
2.The modules can be assembled and disassembled easily and conveniently.
Noisy Its full hydraulic drive causes little noises during operation and no influence on the
surrounding environments
1.Fewer operating workers are required to save cost for labor and machines maintenance during construction.
2.Suitable for different kinds of carrier.
3.Module generalization is realized with our SP380 and SP400 square pile machine. It can be used for both circular
piles and  square piles by changing the module combination
Durable? 1. It is made of military material by first-class suppliers with reliable quality, extending its service life.
2.The mainboard used Q345B and the chisel used the 20CrNiMo3.
3.12 month free after-sales service.
4.Provide 3 sets wear parts for chisel.
5.Professional small tools for free.

SP600-8 Customized Pile Breaker Specification

Model Unit SP400
Range of pile breaker mm 300-400 400-500 300-550 600-800
Max force for single rod KN 320 320 790 790
Max stroke of hydraulic cylinder mm 150 150 205 205
Pressure of hydraulic cylinder Mpa 34.3 34.3 34.3 34.3
Max flow for single cylinder L/min 25 25 25 25
Max height for each crush mm ≤300 ≤300 ≤300 ≤300
Suitable carrier T ≥8 ≥15 ≥20 ≥26
Single moulde weight kg 110 220 400 700
Single module size mm 604*594*286 595*980*275 910*780*400 908×780×400
Dimensions at working mm 1600*1600*2000 1710*1710*2500 2050*2050*2000 2400*2400*2500
Total pile breaker weight kg 650 950 2000 3200

SP600-8 Excavator Pile Breaker Machine Application

In construction project involving pile foundations, one of the most cumbersome and time consuming activity is the crushing of top portion of the Castin-Situ Piles /Precast Piles as required to remove the weak top concrete and expose the reinforcement to be used for further construction. Pile breakers solve the problem by crushing such overhangs in a speedy and precise way. Thereinforcement bars are left intact facilitating the rebuilding work. The breaking down of concrete piles is an essential part of the construction process and a subject that is often not given sufficient early thought in the planning of the piling works.The adoption of a suitable pile breaking method can result in financial savings for the project and most importantly will address and reduce potential health and safety issues in relation to this phase of the works.


For round pile, the cutting diameter is 300-2000mm. And RAY pile breaker light model, the diameter range is 300-1050mm, at least 7 modules but most 12 modules; heavy model, the diameter range is 500-2000mm, at least 6 modules  and most 13 modules.

Well, square pile diameter range is 300-500mm;

Except that the SP500 is a module with 2 cylinders, the others are one module and one cylinder.


SP600-8 Excavator Pile Breaker/Pile Cutting Machine Video

package 2.jpgpackage 3.jpgpackage 3.jpg
