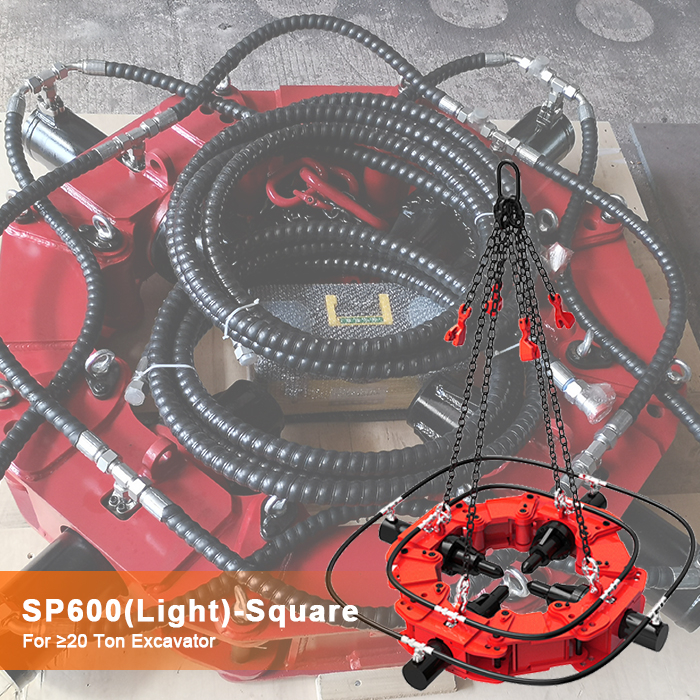

SP600
RAY Attachments
Do you tired to break the piles by manpower? Dangerous , Slowly , Noisy , Expensive salary and so on.
Don’t worry. Ray pile breaker will help you!
| Your problems | How can we solve it? |
| Dangerous | 1. Contact-free operation is enabled. 2. And it imposes no impact force on the parent body of the pile and no influence on the bearing capacity of the pile. |
| Slowly | 1.Replaceable and changeable module combination makes its applicable for piles with various diameters. 2.The modules can be assembled and disassembled easily and conveniently. |
| Noisy | Its full hydraulic drive causes little noises during operation and no influence on the surrounding environments |
| Expensive salary | 1.Fewer operating workers are required to save cost for labor and machines maintenance during construction. 2.Suitable for different kinds of carrier. |
| Durable? | 1. It is made of military material by first-class suppliers with reliable quality, extending its service life. 2.The mainboard used Q345B and the chisel used the 20CrNiMo3. 3.12 month free after-sales service. 4.Provide 3 sets wear parts for chisel. 5.Professional small tools for free. |
(1)The mechanical stress is put pressure on the structural parts not on the connection when it worked and the oil cylinder which is specially-made by Sany used the double oil seal.
(2)There are 7 kinds of pin axle holes to match different shaft. To prevent the form of pile breaker changed when it worked.
(3)The shackle loading weight is 3 tons .Meet the national standards.
(4)The chain hoist is adjustable and the loading weight is 4 tons.
| Model | Unit | SP400 (Light) | SP500 (Light) | SP600 (Heavy) | SP600-8 (Heavy) |
| Range of pile breaker | mm | 300-400 | 400-500 | 300-550 | 600-800 |
| Max force for single rod | KN | 320 | 320 | 790 | 790 |
| Max stroke of hydraulic cylinder | mm | 150 | 150 | 205 | 205 |
| Pressure of hydraulic cylinder | Mpa | 34.3 | 34.3 | 34.3 | 34.3 |
| Max flow for single cylinder | L/min | 25 | 25 | 25 | 25 |
| Max height for each crush | mm | ≤300 | ≤300 | ≤300 | ≤300 |
| Suitable carrier | T | ≥8 | ≥15 | ≥20 | ≥26 |
| Single moulde weight | kg | 110 | 220 | 400 | 700 |
| Single module size | mm | 604*594*286 | 595*980*275 | 910*780*400 | 908×780×400 |
| Dimensions at working | mm | 1600*1600*2000 | 1710*1710*2500 | 2050*2050*2000 | 2400*2400*2500 |
| Total pile breaker weight | kg | 650 | 950 | 2000 | 3200 |
