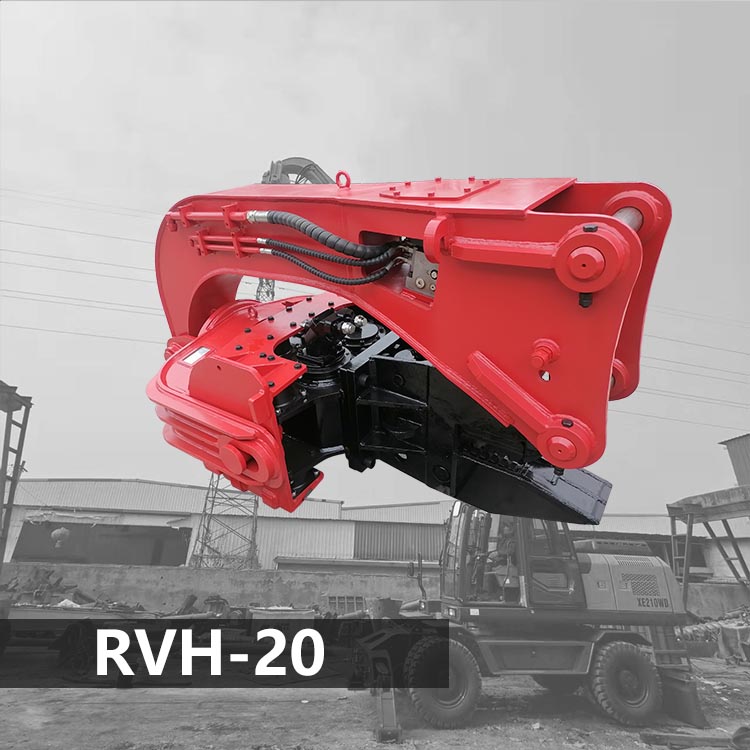

RVH-20 Side Grip Vibratory Hammer

Liquefaction of soil around pile body, reducing pile side friction and soil resistance, and under excavator pressure, vibration pile hammer and pile weight sank to the soil.
  • RVH-20

  • RAY ATTACHMENTS

Availability:

Vibratory Hammer RVH-20 Parameter

hydraulic-vibrating-pile-driver-excavatorpile-driver-for-sale

MODEL Frequency Eccentric
Torque
Vibration
froce
Weight Auxiliary
Arm Weight
Hydraulic System
Operating Pressure
Hydraulic System
Of Traffic Demand
Max Pile
Length
Carrier
UNIT RPM NM TON KG KG BAR LPM M TON
RVH-08 2800 40 38 2200 800 280 160 9 18-25
RVH-10 2800 50 45 2500 800 280 180 13 26-35
RVH-14 3000 65 60 2800 800 300 210 16 36-50

Vibratory Hammer RVH-20 Characteristics

1.Save Time: Much quickly, especiallly for extract old piles out of the ground

2.Wide Application: Can be used in underwater

3.Less nosie and protect the enviroment.

4.Easy to ship: Small size and light weight than traditional pile drivers.

5. High efficiency. Using traditional pile drivers a 30m long pile could take up to an hour to drive all the way in the ground, using a vibratory hammer that same pile can be driven in 10 minutes or less depending on soil conditions.

 Pile-driver-application

Pile drivers install piling to hold back earth during excavations, set up the foundation of skyscrapers and bridges, or build docks and wharfs. Due to the wide range of work performed in this field. Different types of piles can be worked through different clamps, such as round piles, concrete piles, steelsheet piles, square piles.


Vibratory Hammer RVH-20 Structure

pile driver Rotation motorpile driver Vibration motorpile driver Rubberpile driver attachment

Vibratory Hammer RVH-20 Working Principle

Hydraulic vibrating pile driver take the advantage of high of frequency vibration generated by motor and transit the vibration force to the hydraulic vibrating pile driver. Lead to changes in soil around pile structure for vibration, strength decrease.

Liquefaction of soil around pile body, reducing pile side friction and soil resistance, and under excavator pressure, vibration pile hammer and pile weight sank to the soil.

pile-driver-working-principle

Vibratory Hammer RVH-20 Attachmente

We recommend suitable pile driver attachment according to different piles.

excavator-pile-driver-attachments_02excavator-pile-driver-attachments_01

Vibratory Hammer RVH-20 Produce

Why you choose Ray Attachments vibration driver ?

1. We are professional in excavator attachments and we have much experience in construction industry.

Our machineMachining center, CNC boring machine, CNC milling machine, digital boring and milling machine, CNC gantry machining center.

Expecially,CNC gantry maching center, it ensure the precision and concentricity and pile drive with longer service life.

pile-driver-for-salepile driver produce

Pile-driver-machining-center
