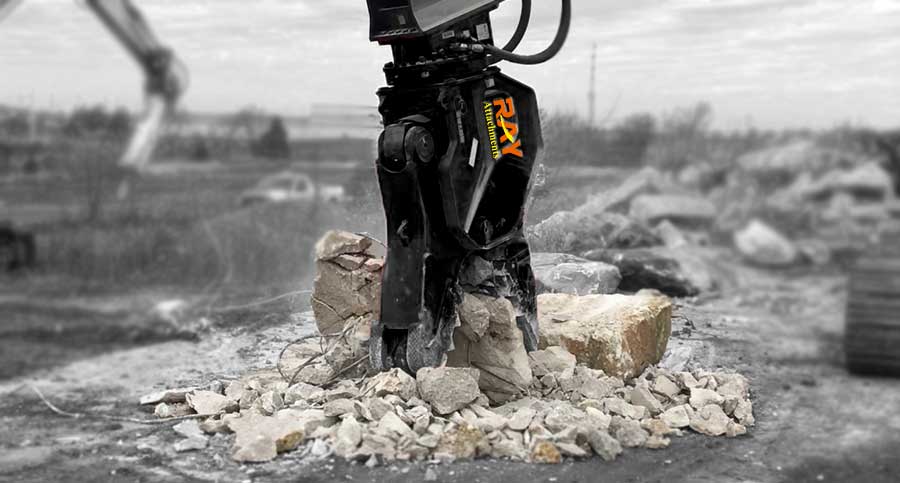

We launches its new series of dedicated rotating pulverizer. This equipment is particularly effective for primary and secondary demolition, being suitable for high reach and regular applications. The RP range are fitted with a power valve to give maximum power when required and decrease cycle times when no load is applied.
The perfect combination of power through the large hydraulic cylinder, top quality components and highest grade steels which give the optimum strength and wear resistant properties.
As below are the advantages for RAY hydraulic rotation pulverizer.
Excavator Hydraulic Crusher
1. Hydraulic rotation: The sturdy rotation allows accurate positioning of the attachment in any working environment and in complete safety. The crusher may be suppliyed with mechanical rotation
2. Incredible strength: Thanks to the work of the two powerful cylinders, this attachment gives an enormous force to the tips.
3.Centralized greasing system.
4. Chamfered Jaws: On the profile of each jaw there is a chamfer which increases the capacity to penetrate cement.

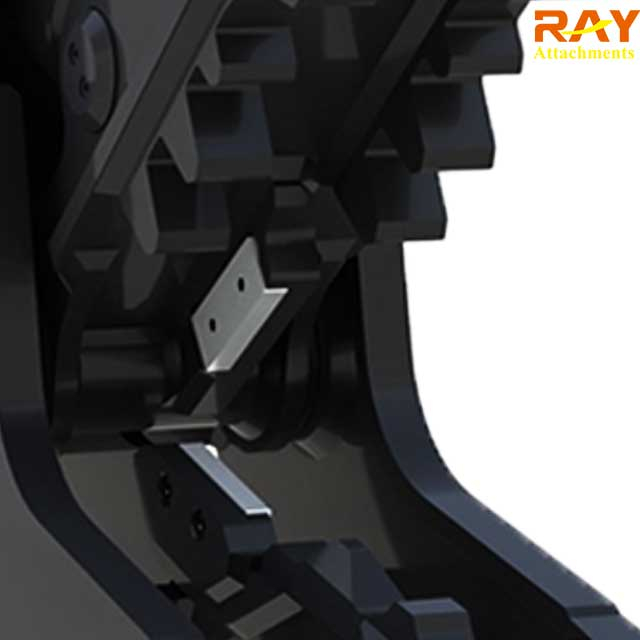

5. Blades: On each model there are blades for rebars cutting.The blades can be turned into its own different sides
to recover the correct cutting profile.
6. Speed valve: All models are equipped with a patented Speed Valve, granting increased performances when needed.
Makesure of the weight of excavator, the oil flow and the working pressure of your excavator.
Hydraulic Crusher CR
Item | CR5R | CR15R | CR20R | CR26R | |
Excavator weight | [t] | 5-14 | 14-18 | 18-24 | 24-35 |
Tool weight | [kg] | 530 | 1500 | 2100 | 2800 |
Cyline force | [t] | 50 | 100 | 132 | 157 |
Force at upper tips F1 (front teeth) | [t] | 34 | 64 | 84 | 92 |
Force in the middle F2 (middle of blade) | [t] | 51 | 99 | 127 | 142 |
Cutting force F3 | [t] | 141 | 284 | 329 | 392 |
Hydraulic working pressure | 200-250 | 280-320 | 280-320 | 280-320 | |
Oil flow | [l/min] | 50-90 | 130-150 | 180-320 | 220-250 |
Rotation type | / | 360°H | 360° H | 360° H | 360° H |
Hydraulic motor max oil pressure | [bar] | 90-100 | 90-100 | 90-100 | 90-100 |
Hydraulic motor oil flow | [l/min] | 30-40 | 30-40 | 30-40 | 30-40 |
Time of closing at max oil flow | [s] | 3.79 | 2,5 | 2,2 | 2,3 |
Time of opening at max oil flow | [s] | 2.31 | 2,5 | 3,7 | 4 |
N° of cycles per minute at max oil flow | [cycles/min] | 9.8 | 12 | 10 | 9,4 |
N° of revs per minute at max oil flow | [revs/min] | 9.8 | 12 | 11 | 11 |
Hyd.ports size cylinder | / | ½" SAE | ¾" SAE | 1" SAE 6000 p.s.i. | 1" SAE 6000 p.s.i. |
6000 p.s.i. | 6000 p.s.i. | ||||
Hyd.ports size rotation | / | ½" GAS | ½" GAS | ½" GAS | ½" GAS |
Hyd.port size drain line | / | N,N | N,N | N,N | N,N |
Speed valve | / | NO | YES | YES | YES |
Max diameter to be cut** | [mm] | 36 | 50 | 58 | 63 |
Blade length | [mm] | 140 | 200 | 200 | 250 |
Interchangeable wear parts | / | NO | NO | NO | NO |
Automatic grease system | / | NO | NO | NO | NO |
Hydraulic Crusher MCP
Item | Unit | MCP300 | MCP480 | MCP600 | MCP700 | MCP800 | MCP910 | MCP1000 |
Excavator weight | (t) | 1.5-4 | 4-10 | 10-18 | 16-22 | 18-25 | 25-35 | 35-45 |
Tool weight* | (kg) | 150 | 450 | 1000 | 1650 | 2050 | 2850 | 3800 |
Cylinder force | (t) | 24 | 71 | 100 | 120 | 145 | 157 | 197 |
Force at upper tips F1 (front teeth) | (t) | 12 | 39 | 54 | 66 | 73 | 99 | 123 |
Force in the middle F2 (middle of blade) | (t) | 20 | 60 | 79 | 93 | 115 | 153 | 195 |
Cutting force F3 | (t) | 41 | 130 | 155 | 222 | 196 | 276 | 348 |
Hydraulic working pressure | (bar) | 200-250 | 220-280 | 280-320 | 280-320 | 280-320 | 280-320 | 280-320 |
Oil flow | (l/min) | 30-60 | 80-100 | 100-180 | 100-180 | 180-220 | 220-280 | 280-320 |
Rotation type | NO ROT. | NO ROT. | NO ROT. | NO ROT. | NO ROT. | NO ROT. | NO ROT. | |
Time of closing at max oil flow | (s.) | 3,2 | 3,4 | 3,09 | 2.28 | 2,28 | 2,94 | 3,50 |
Time of opening at max oil flow | (s.) | 2,0 | 2,4 | 1,88 | 2.25 | 2,26 | 2,74 | 3,36 |
N°of cycles per minute at max oil flow | (cycles/min) | 11,7 | 10,4 | 12,1 | 15 | 13,2 | 10,6 | 8,7 |
Hyd. ports size cylinder | / | 3/8''SAE 6000 p.s.i. | 1/2''SAE 6000 p.s.i. | 1'' SAE 6000 p.s.i. | 1'' SAE 6000 p.s.i. | 1'' SAE 6000 p.s.i. | 1''1/4 SAE 6000 p.s.i. | 1''1/4 SAE 6000 p.s.i. |
Speed valve | / | NO | NO | Optional | Yes | Yes | Yes | Yes |
Max diameter to be cut** | (mm) | 15 | 25 | 50 | 50 | 55 | 60 | 65 |
Blade length | (mm) | 80 | 120 | 122 | 200 | 180 | 180 | 220 |
Interchangeable wear parts | / | NO | NO | NO | NO | Yes | Yes | Yes |
Automatic grease system | / | NO | NO | NO | NO | NO | NO | NO |
Hydraulic Crusher RP
Item | Unit | RP10 | RP16 | RP18 | RP25 | RP35 | RP50 |
Excavator weight | [t] | 10-18 | 16-23 | 18-26 | 26-32 | 32-45 | 45-60 |
Tool weight | [kg] | 1050 | 1720 | 2000 | 2750 | 4300 | 5700 |
Cyline force | [t] | 89 | 100 | 145 | 158 | 172 | 215 |
Force at upper tips F1 (front teeth) | [t] | 49 | 55 | 71 | 83 | 109 | 137 |
Force in the middle F2 (middle of blade) | [t] | 73 | 85 | 112 | 129 | 178 | 222 |
Cutting force F3 | [t] | 162 | 207 | 230 | 271 | 364 | 458 |
Hydraulic working pressure | [bar] | 300-350 | 300-350 | 300-350 | 300-350 | 300-350 | 300-350 |
Oil flow | [l/min] | 100-180 | 180-200 | 180-200 | 200-220 | 220-280 | 280-320 |
Rotation type | / | 360° hydraulic | |||||
Hydraulic motor max oil pressure | [bar] | 190-200 | 90-100 | 90-100 | 90-100 | 100-115 | 100-115 |
Hydraulic motor oil flow | [l/min] | 10月15日 | 30-40 | 30-40 | 30-40 | 30-40 | 30-40 |
Time of closing at max oil flow | [s] | 2,22 | 2,78 | 1,36 | 2,28 | 2,94 | 3,50 |
Time of opening at max oil flow | [s] | 1,06 | 1,69 | 2,31 | 2,26 | 2,74 | 3,36 |
N° of cycles per minute at max oil flow | [cycles/min] | 18,3 | 13,4 | 16,3 | 13,2 | 10,6 | 8,7 |
N° of revs per minute at max oil flow | [revs/min] | 16,6 | 11,5 | 11,5 | 8,1 | 6,7 | 5,7 |
Hyd.ports size cylinder | / | 3/4’’ SAE | 1’’ SAE | 1’’ SAE | 1’’ SAE | 1’’1/4 SAE | 1’’1/4 SAE |
6000 p.s.i. | 6000 p.s.i. | 6000 p.s.i. | 6000 p.s.i. | 6000 p.s.i. | 6000 p.s.i. | ||
Hyd.ports size rotation | / | ½ ‘’GAS | ½ ‘’GAS | ½ ‘’GAS | ½ ‘’GAS | ½ ‘’GAS | ½ ‘’GAS |
Hyd.port size drain line | / | N.N. | N.N. | N.N. | N.N. | N.N. | N.N. |
Speed valve | / | NO | NO | Yes | Yes | Yes | Yes |
Max diameter to be cut** | [mm] | n.d | 50 | 55 | 61 | 66 | 69 |
Blade length | [mm] | 122 | 180 | 220 | 300 | 300 | 300 |
Interchangeable wear parts | / | NO | Yes | Yes | Yes | Yes | NO |
Automatic grease system | / | NO | NO | NO | NO | NO | NO |
We launches its new series of dedicated rotating pulverizer. This equipment is particularly effective for primary and secondary demolition, being suitable for high reach and regular applications. The RP range are fitted with a power valve to give maximum power when required and decrease cycle times when no load is applied.
The perfect combination of power through the large hydraulic cylinder, top quality components and highest grade steels which give the optimum strength and wear resistant properties.
As below are the advantages for RAY hydraulic rotation pulverizer.
Excavator Hydraulic Crusher
1. Hydraulic rotation: The sturdy rotation allows accurate positioning of the attachment in any working environment and in complete safety. The crusher may be suppliyed with mechanical rotation
2. Incredible strength: Thanks to the work of the two powerful cylinders, this attachment gives an enormous force to the tips.
3.Centralized greasing system.
4. Chamfered Jaws: On the profile of each jaw there is a chamfer which increases the capacity to penetrate cement.
5. Blades: On each model there are blades for rebars cutting.The blades can be turned into its own different sides
to recover the correct cutting profile.
6. Speed valve: All models are equipped with a patented Speed Valve, granting increased performances when needed.
Makesure of the weight of excavator, the oil flow and the working pressure of your excavator.
Hydraulic Crusher CR
Item | CR5R | CR15R | CR20R | CR26R | |
Excavator weight | [t] | 5-14 | 14-18 | 18-24 | 24-35 |
Tool weight | [kg] | 530 | 1500 | 2100 | 2800 |
Cyline force | [t] | 50 | 100 | 132 | 157 |
Force at upper tips F1 (front teeth) | [t] | 34 | 64 | 84 | 92 |
Force in the middle F2 (middle of blade) | [t] | 51 | 99 | 127 | 142 |
Cutting force F3 | [t] | 141 | 284 | 329 | 392 |
Hydraulic working pressure | 200-250 | 280-320 | 280-320 | 280-320 | |
Oil flow | [l/min] | 50-90 | 130-150 | 180-320 | 220-250 |
Rotation type | / | 360°H | 360° H | 360° H | 360° H |
Hydraulic motor max oil pressure | [bar] | 90-100 | 90-100 | 90-100 | 90-100 |
Hydraulic motor oil flow | [l/min] | 30-40 | 30-40 | 30-40 | 30-40 |
Time of closing at max oil flow | [s] | 3.79 | 2,5 | 2,2 | 2,3 |
Time of opening at max oil flow | [s] | 2.31 | 2,5 | 3,7 | 4 |
N° of cycles per minute at max oil flow | [cycles/min] | 9.8 | 12 | 10 | 9,4 |
N° of revs per minute at max oil flow | [revs/min] | 9.8 | 12 | 11 | 11 |
Hyd.ports size cylinder | / | ½" SAE | ¾" SAE | 1" SAE 6000 p.s.i. | 1" SAE 6000 p.s.i. |
6000 p.s.i. | 6000 p.s.i. | ||||
Hyd.ports size rotation | / | ½" GAS | ½" GAS | ½" GAS | ½" GAS |
Hyd.port size drain line | / | N,N | N,N | N,N | N,N |
Speed valve | / | NO | YES | YES | YES |
Max diameter to be cut** | [mm] | 36 | 50 | 58 | 63 |
Blade length | [mm] | 140 | 200 | 200 | 250 |
Interchangeable wear parts | / | NO | NO | NO | NO |
Automatic grease system | / | NO | NO | NO | NO |
Hydraulic Crusher MCP
Item | Unit | MCP300 | MCP480 | MCP600 | MCP700 | MCP800 | MCP910 | MCP1000 |
Excavator weight | (t) | 1.5-4 | 4-10 | 10-18 | 16-22 | 18-25 | 25-35 | 35-45 |
Tool weight* | (kg) | 150 | 450 | 1000 | 1650 | 2050 | 2850 | 3800 |
Cylinder force | (t) | 24 | 71 | 100 | 120 | 145 | 157 | 197 |
Force at upper tips F1 (front teeth) | (t) | 12 | 39 | 54 | 66 | 73 | 99 | 123 |
Force in the middle F2 (middle of blade) | (t) | 20 | 60 | 79 | 93 | 115 | 153 | 195 |
Cutting force F3 | (t) | 41 | 130 | 155 | 222 | 196 | 276 | 348 |
Hydraulic working pressure | (bar) | 200-250 | 220-280 | 280-320 | 280-320 | 280-320 | 280-320 | 280-320 |
Oil flow | (l/min) | 30-60 | 80-100 | 100-180 | 100-180 | 180-220 | 220-280 | 280-320 |
Rotation type | NO ROT. | NO ROT. | NO ROT. | NO ROT. | NO ROT. | NO ROT. | NO ROT. | |
Time of closing at max oil flow | (s.) | 3,2 | 3,4 | 3,09 | 2.28 | 2,28 | 2,94 | 3,50 |
Time of opening at max oil flow | (s.) | 2,0 | 2,4 | 1,88 | 2.25 | 2,26 | 2,74 | 3,36 |
N°of cycles per minute at max oil flow | (cycles/min) | 11,7 | 10,4 | 12,1 | 15 | 13,2 | 10,6 | 8,7 |
Hyd. ports size cylinder | / | 3/8''SAE 6000 p.s.i. | 1/2''SAE 6000 p.s.i. | 1'' SAE 6000 p.s.i. | 1'' SAE 6000 p.s.i. | 1'' SAE 6000 p.s.i. | 1''1/4 SAE 6000 p.s.i. | 1''1/4 SAE 6000 p.s.i. |
Speed valve | / | NO | NO | Optional | Yes | Yes | Yes | Yes |
Max diameter to be cut** | (mm) | 15 | 25 | 50 | 50 | 55 | 60 | 65 |
Blade length | (mm) | 80 | 120 | 122 | 200 | 180 | 180 | 220 |
Interchangeable wear parts | / | NO | NO | NO | NO | Yes | Yes | Yes |
Automatic grease system | / | NO | NO | NO | NO | NO | NO | NO |
Hydraulic Crusher RP
Item | Unit | RP10 | RP16 | RP18 | RP25 | RP35 | RP50 |
Excavator weight | [t] | 10-18 | 16-23 | 18-26 | 26-32 | 32-45 | 45-60 |
Tool weight | [kg] | 1050 | 1720 | 2000 | 2750 | 4300 | 5700 |
Cyline force | [t] | 89 | 100 | 145 | 158 | 172 | 215 |
Force at upper tips F1 (front teeth) | [t] | 49 | 55 | 71 | 83 | 109 | 137 |
Force in the middle F2 (middle of blade) | [t] | 73 | 85 | 112 | 129 | 178 | 222 |
Cutting force F3 | [t] | 162 | 207 | 230 | 271 | 364 | 458 |
Hydraulic working pressure | [bar] | 300-350 | 300-350 | 300-350 | 300-350 | 300-350 | 300-350 |
Oil flow | [l/min] | 100-180 | 180-200 | 180-200 | 200-220 | 220-280 | 280-320 |
Rotation type | / | 360° hydraulic | |||||
Hydraulic motor max oil pressure | [bar] | 190-200 | 90-100 | 90-100 | 90-100 | 100-115 | 100-115 |
Hydraulic motor oil flow | [l/min] | 10月15日 | 30-40 | 30-40 | 30-40 | 30-40 | 30-40 |
Time of closing at max oil flow | [s] | 2,22 | 2,78 | 1,36 | 2,28 | 2,94 | 3,50 |
Time of opening at max oil flow | [s] | 1,06 | 1,69 | 2,31 | 2,26 | 2,74 | 3,36 |
N° of cycles per minute at max oil flow | [cycles/min] | 18,3 | 13,4 | 16,3 | 13,2 | 10,6 | 8,7 |
N° of revs per minute at max oil flow | [revs/min] | 16,6 | 11,5 | 11,5 | 8,1 | 6,7 | 5,7 |
Hyd.ports size cylinder | / | 3/4’’ SAE | 1’’ SAE | 1’’ SAE | 1’’ SAE | 1’’1/4 SAE | 1’’1/4 SAE |
6000 p.s.i. | 6000 p.s.i. | 6000 p.s.i. | 6000 p.s.i. | 6000 p.s.i. | 6000 p.s.i. | ||
Hyd.ports size rotation | / | ½ ‘’GAS | ½ ‘’GAS | ½ ‘’GAS | ½ ‘’GAS | ½ ‘’GAS | ½ ‘’GAS |
Hyd.port size drain line | / | N.N. | N.N. | N.N. | N.N. | N.N. | N.N. |
Speed valve | / | NO | NO | Yes | Yes | Yes | Yes |
Max diameter to be cut** | [mm] | n.d | 50 | 55 | 61 | 66 | 69 |
Blade length | [mm] | 122 | 180 | 220 | 300 | 300 | 300 |
Interchangeable wear parts | / | NO | Yes | Yes | Yes | Yes | NO |
Automatic grease system | / | NO | NO | NO | NO | NO | NO |
