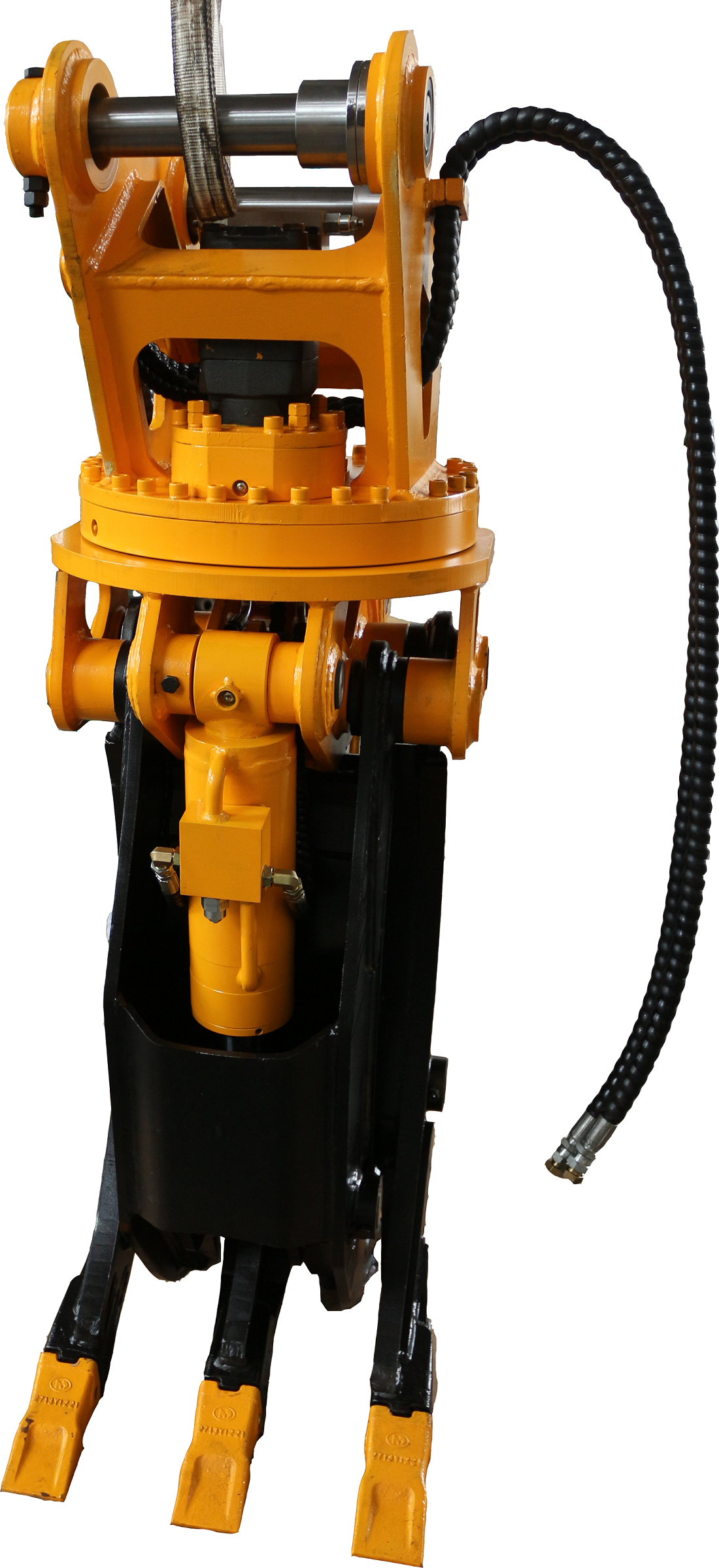

Hydraulic Grapple for 1-50T Excavator

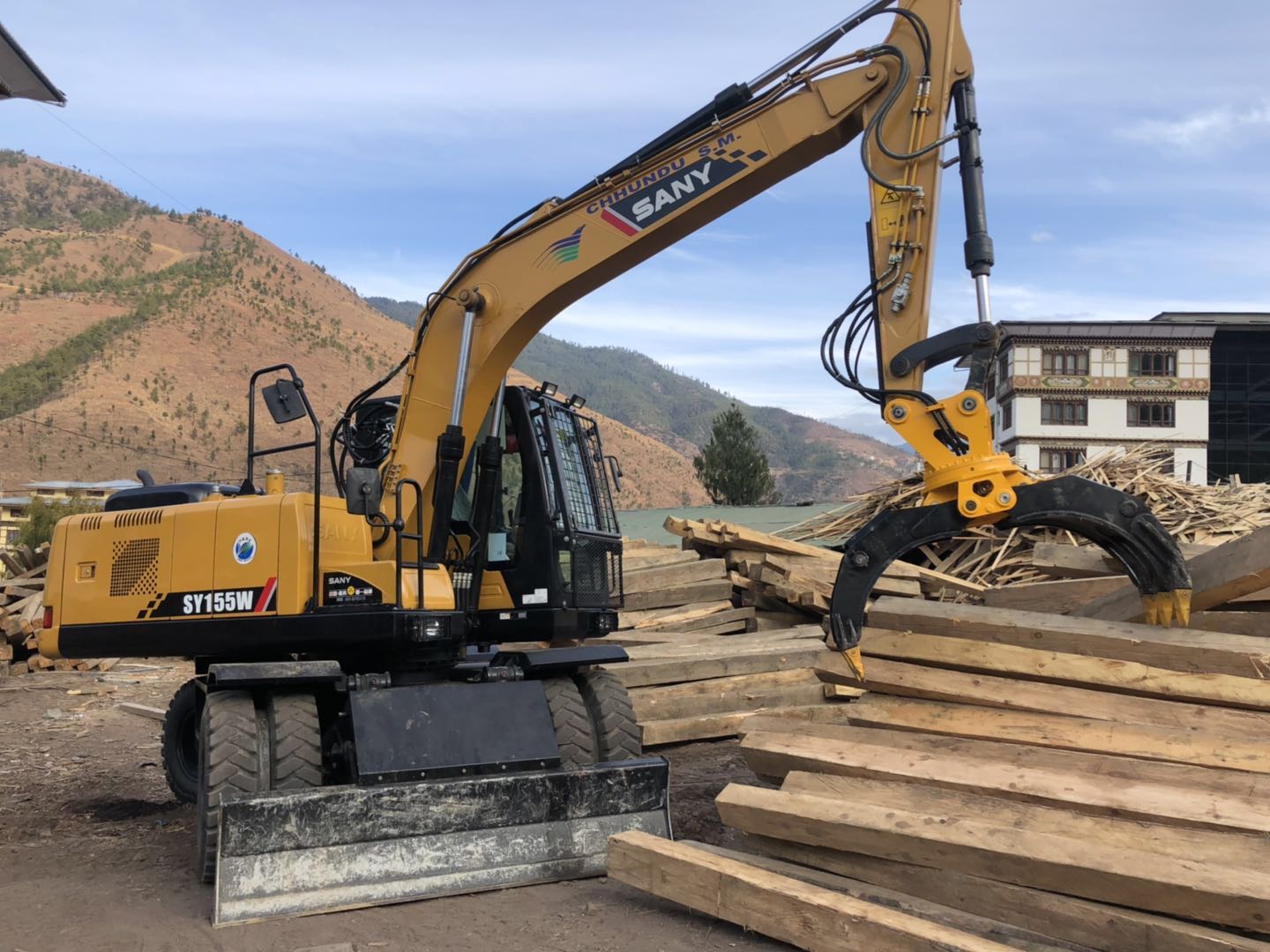

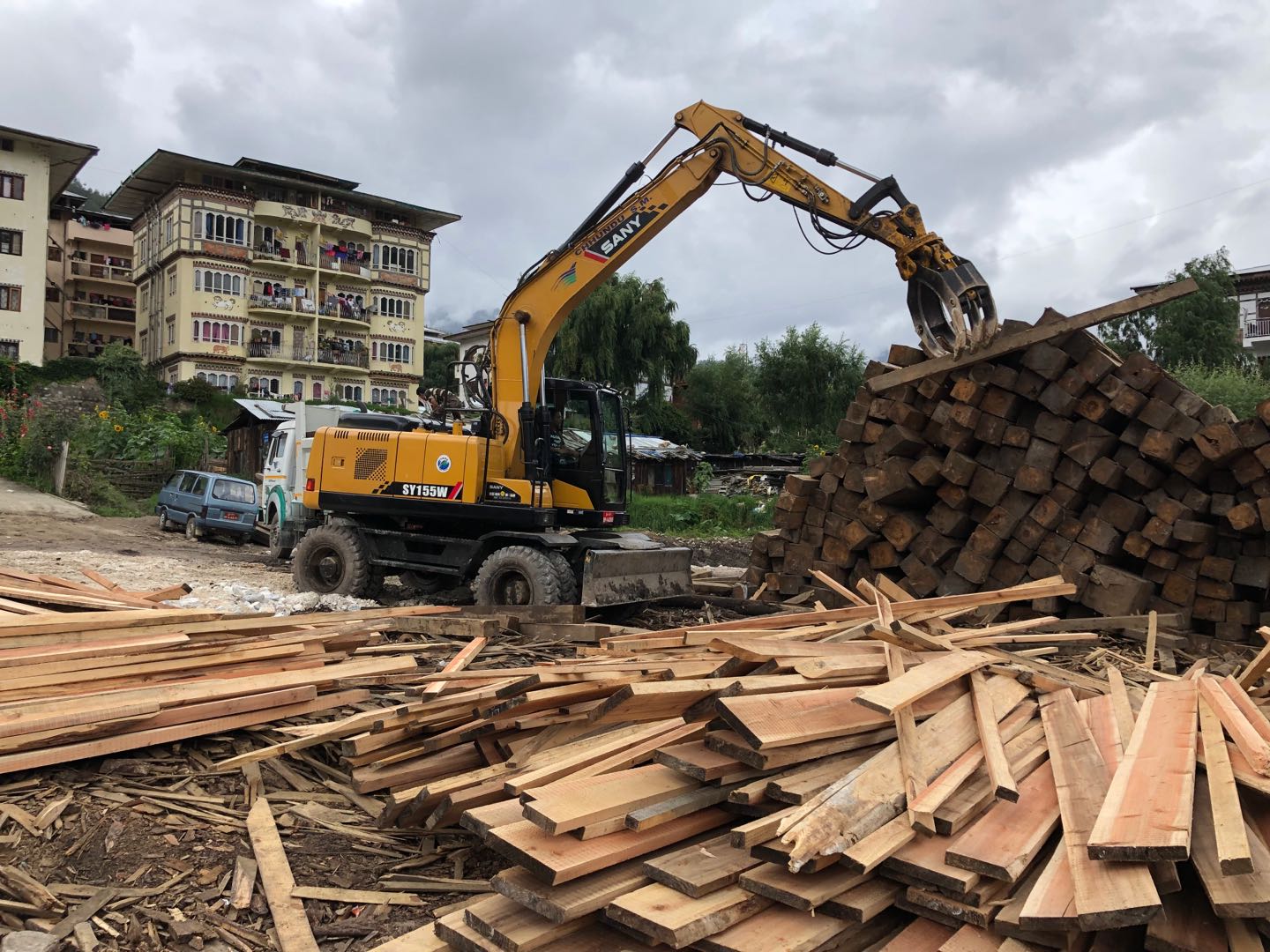

Excavator wooden/stone grapple for 1-50T excavator
  • RHG

  • RAYATTACHMENTS

Availability:

Product Overview

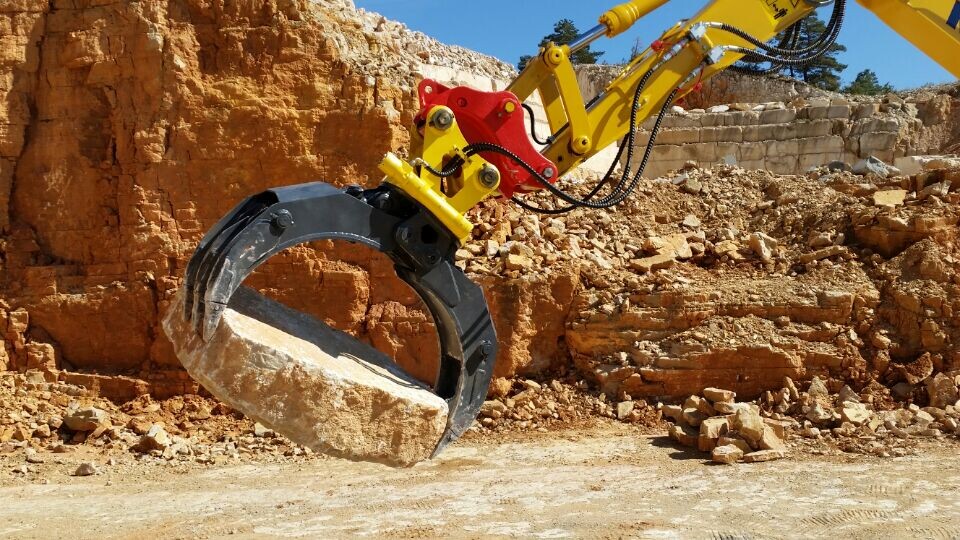

Grab is a lifting appliance which depend on jaw opening and closing crawl and unloading bulk material. According to be stacked capture material density is divided into light, medium, heavy, and super heavy. So it can handle of stones, pipes, disposable waste, landscaping works and many others.
Select Model
Specification: (Wood/Stone Grapple)
Model
Unit
RHG01
RHG03
RHG04
RHG06
RHG08
RHG10
RHG14
Weight
Kg
100
250
390
740
1380
1700
1900
Jaw opening
mm
800
1100
1400
1800
2300
2500
2500
Working pressure
Kg/cm²
80-100
110-140
120-160
150-170
160-180
160-180
180-200
Setting pressure
Kg/cm²
160
170
180
190
200
210
250
Oil flow
l/m
20-40
30-55
50-100
90-110
100-140
130-170
200-250
Cylinder
pcs
3.0 x 2
4.0 x 2
4.5 x 2
8.0 x 2
9.7 x 2
12 x 2
14 x 2
Carrier
ton
1-3
4 - 5
6-11
12-16
17-23
24-30
33-45
* This specifications are subject to change without prior notice for the improvement of quality.

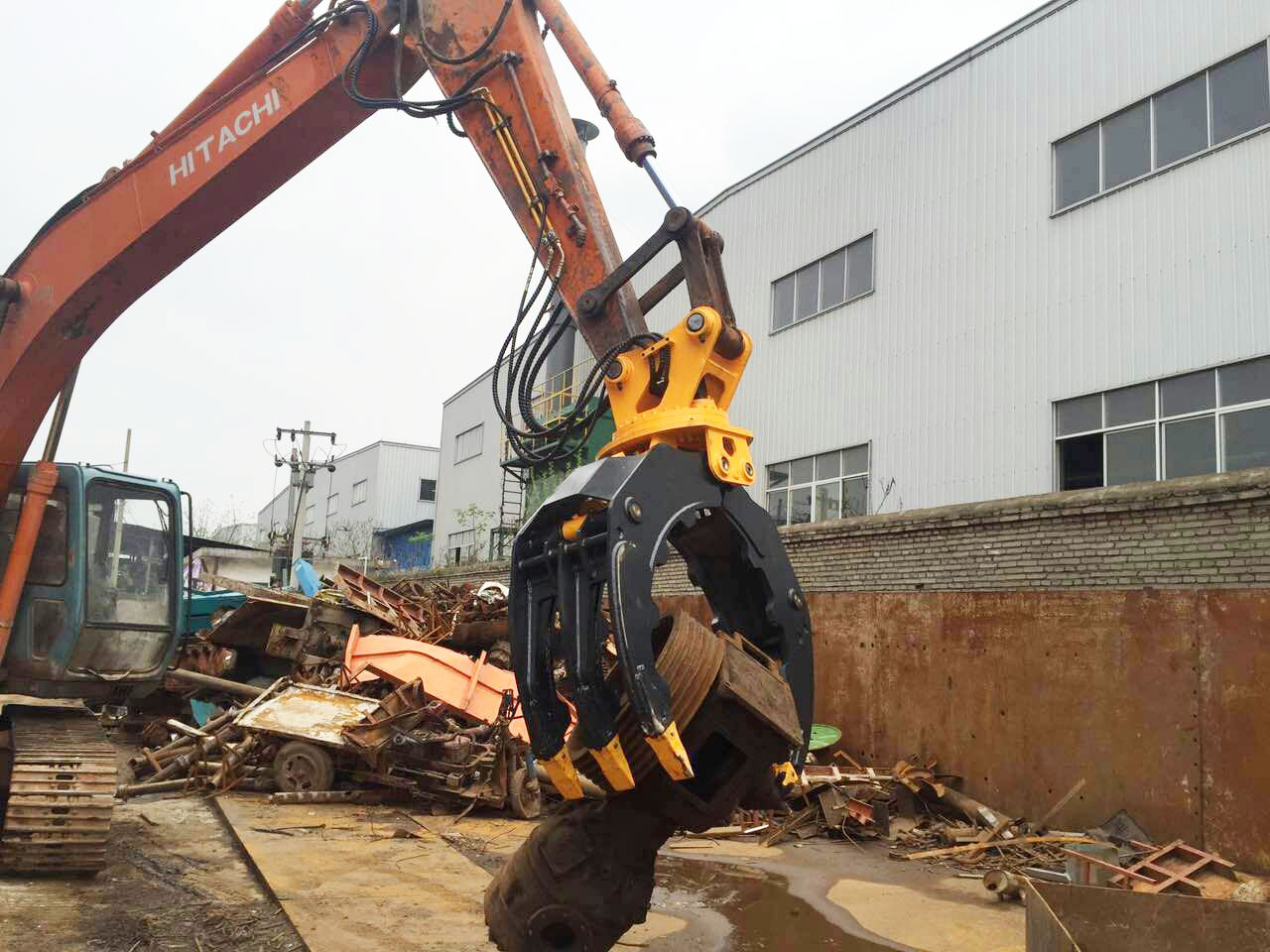

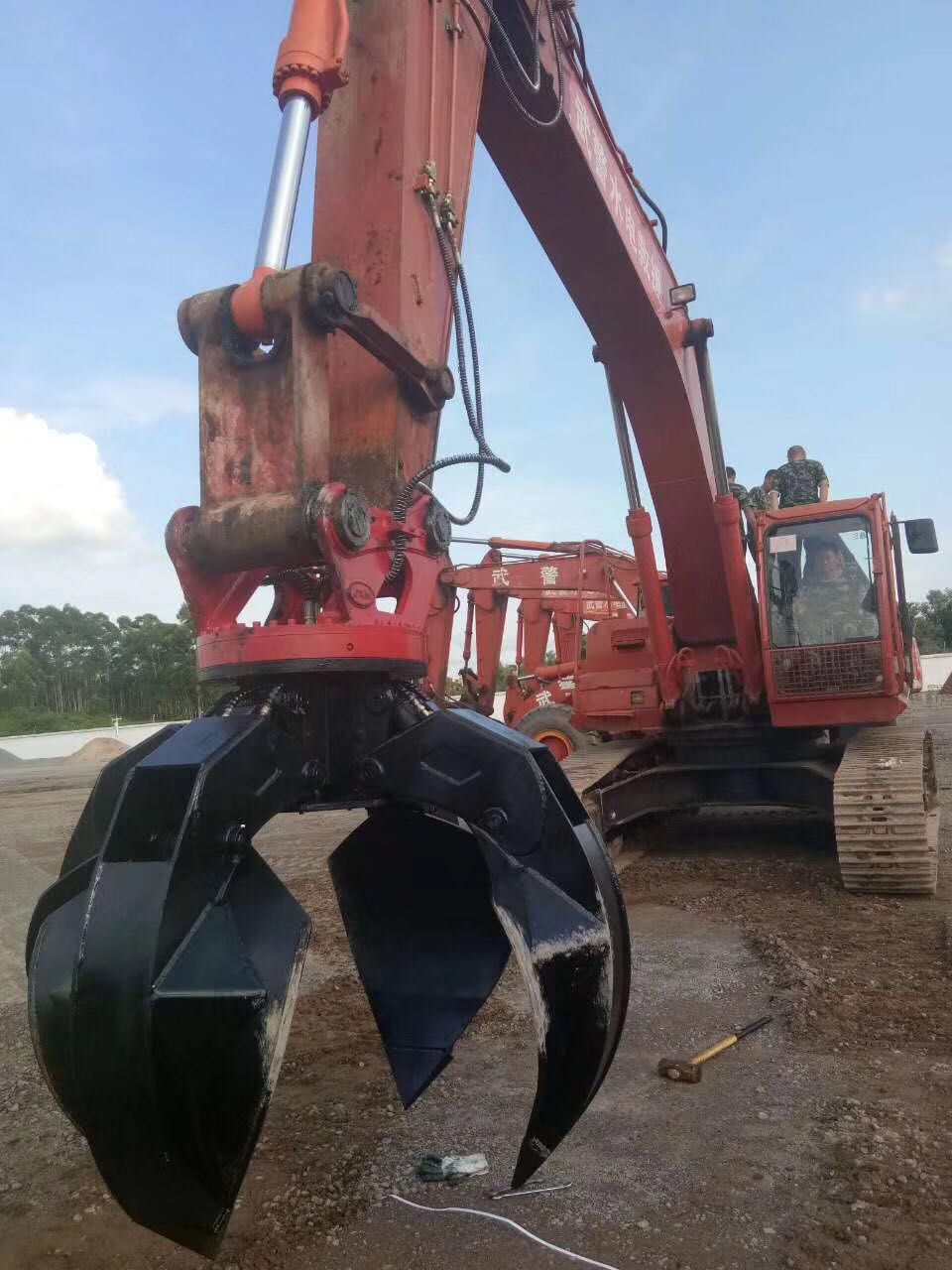

Specification: (Steel Scrap Grapple)
Model
unit
RHGP-04
RHGP-06
RHGP-08
RHGP-10
Weight
Kg
510
1200
1560
1800
Max jaw  opening
mm
1750
1780
1950
2180
Pressure
bar
260
260
260
260
Oil flow
l/m
20-70
60-120
60-120
60-120
Grab weight
Kg
800
1000
1300
1700
No.of Jaw
pcs
4-5
4-5
4-5
4-5
Excavator
ton
5-11
12-18
18-25
26-35
* This specifications are subject to change without prior notice for the improvement of quality.

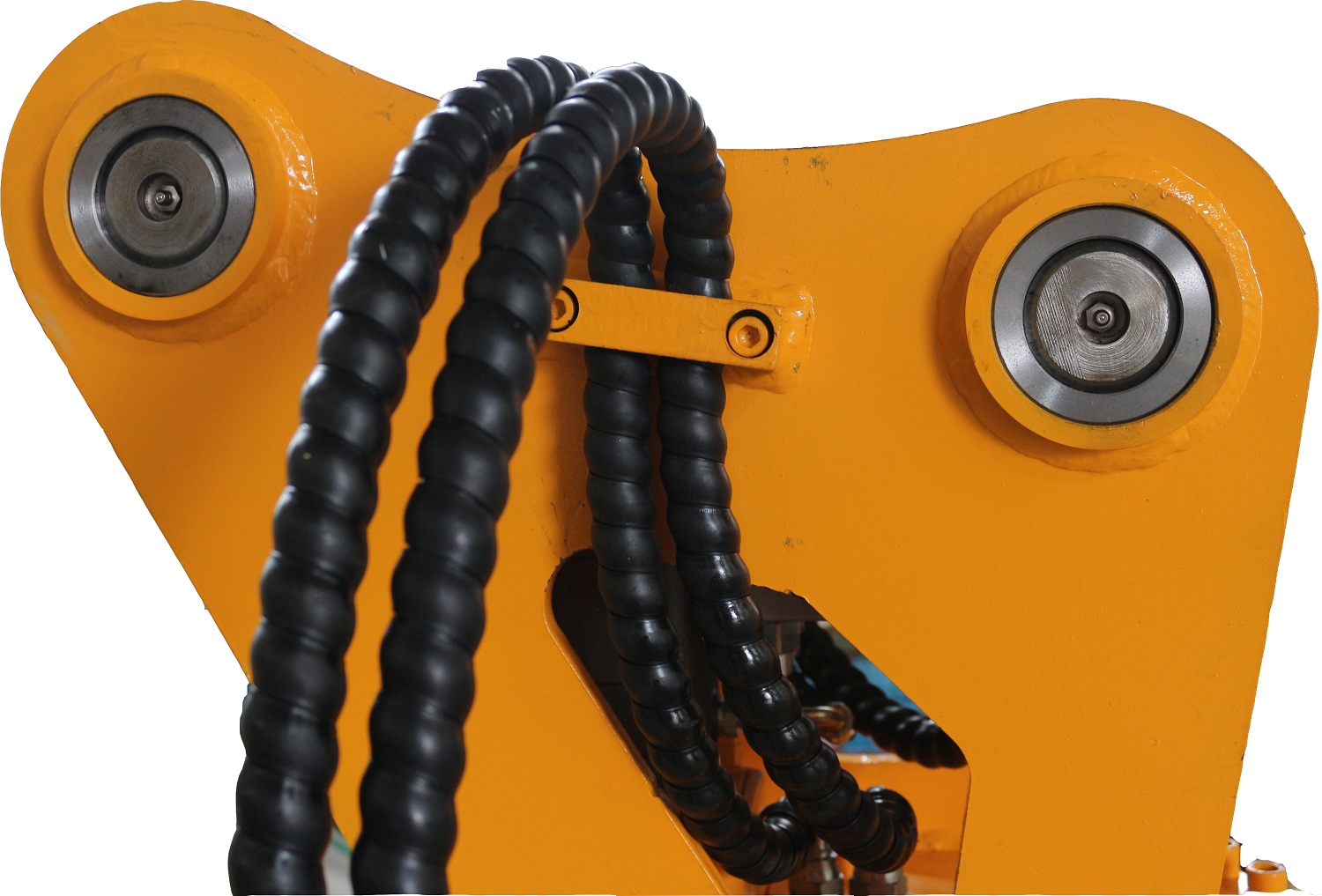

Our Advantages

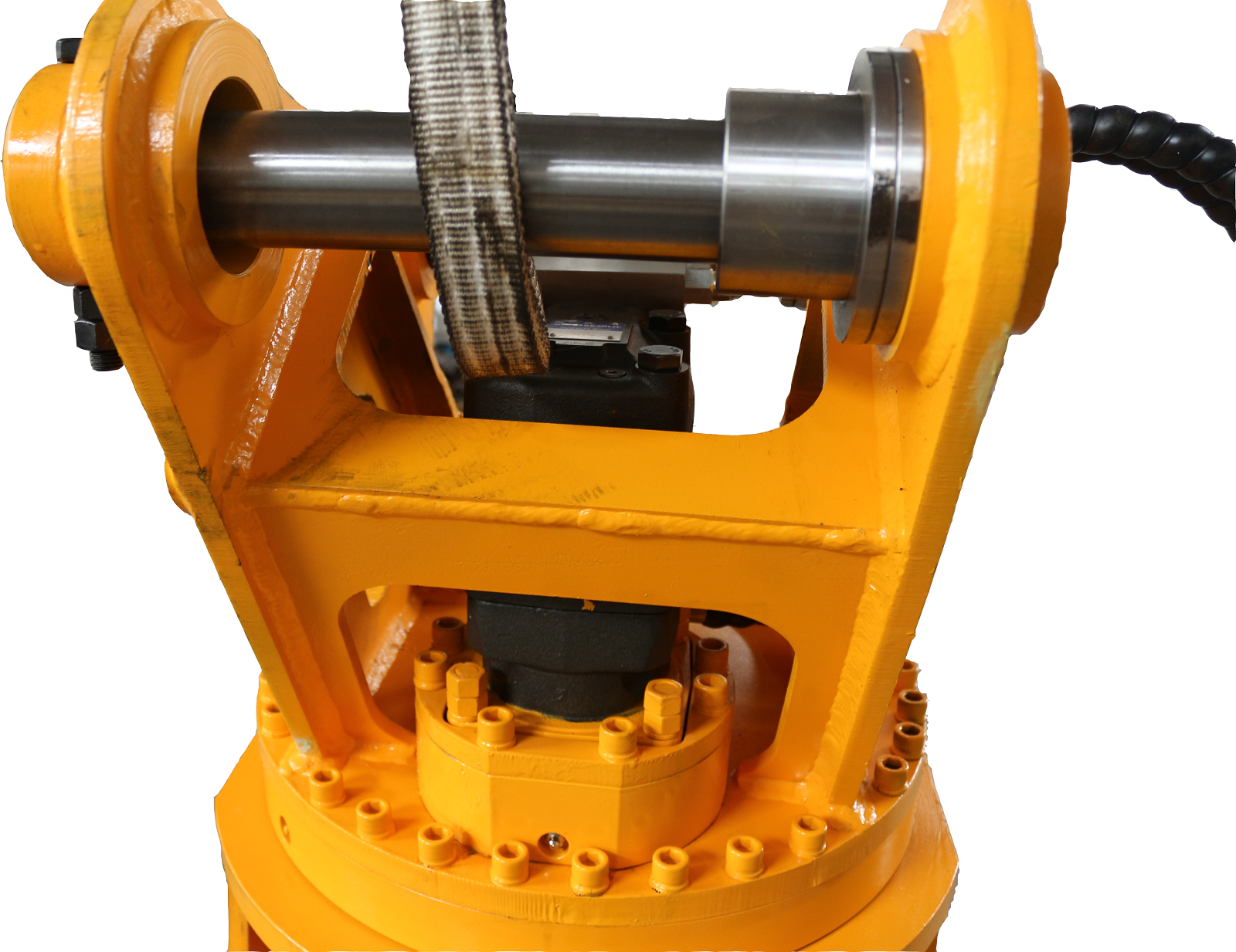

1.Imported motor : Driven by M+S motor

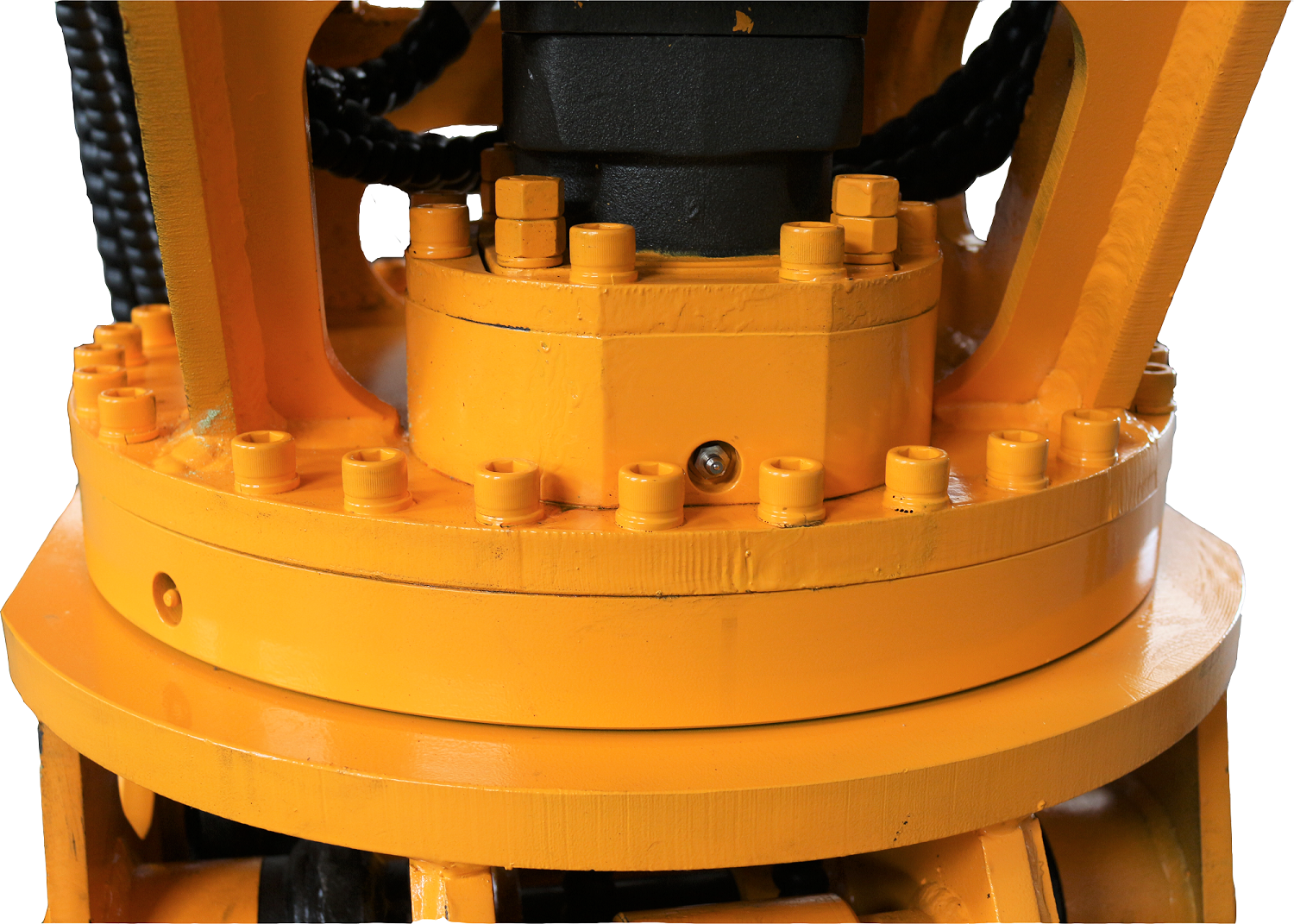

2. high strength rotating support device

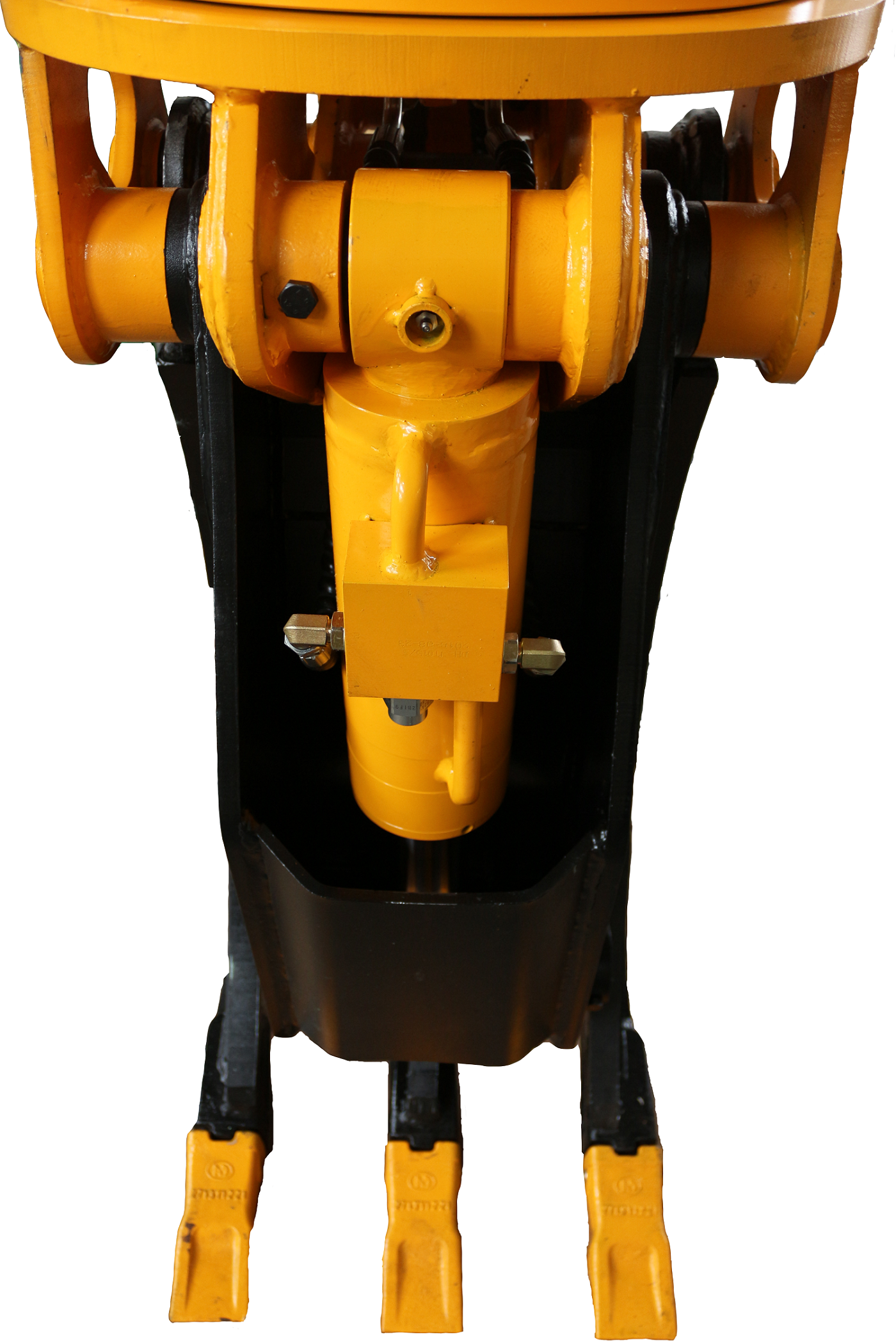

3.Cylinder with USA safety valve (USA SUN brand)

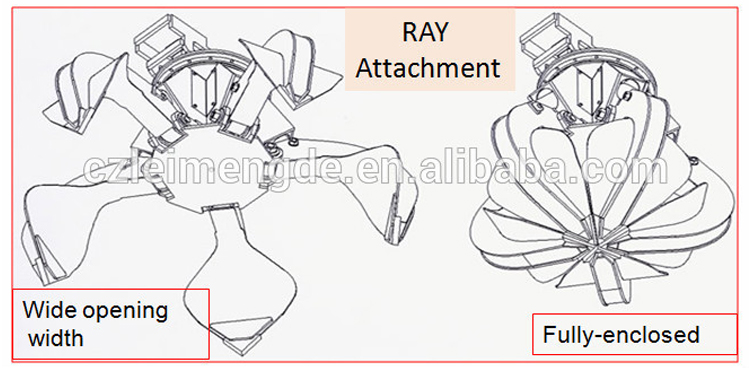

4.3+2,4+3,5+4 fingers for your option,grab thing more stable
5.Quality assurance: 12 months

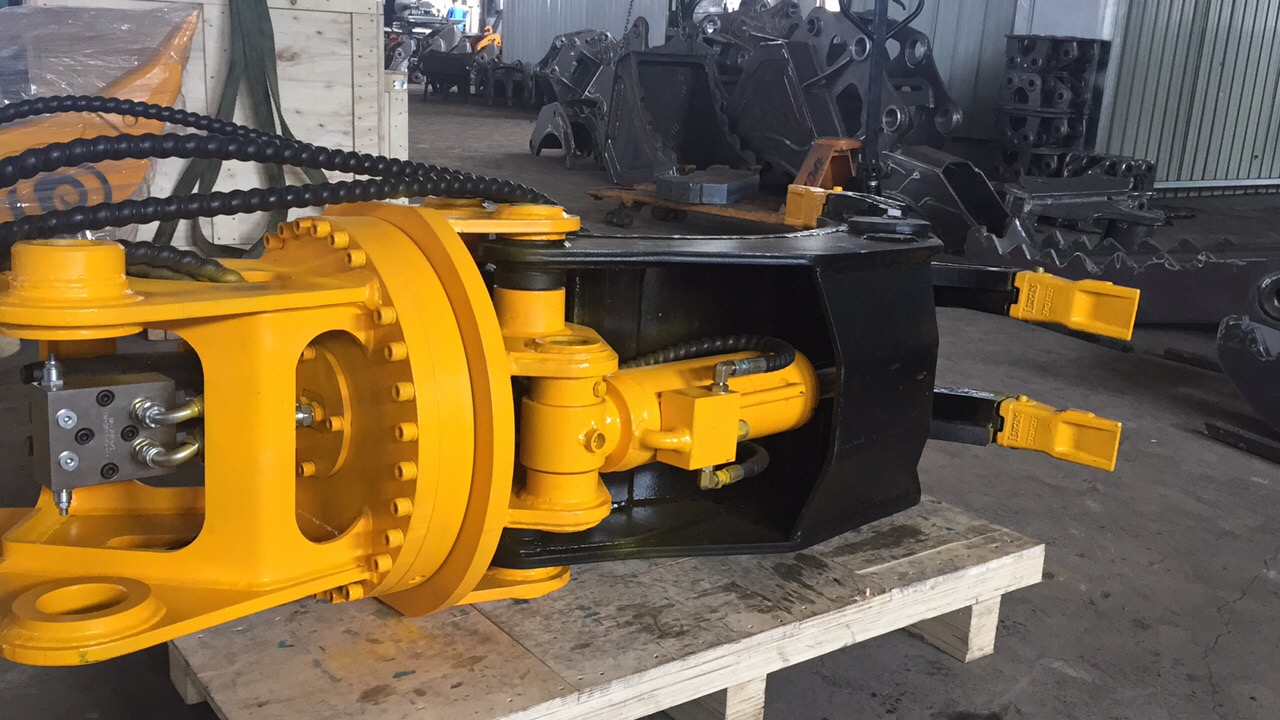

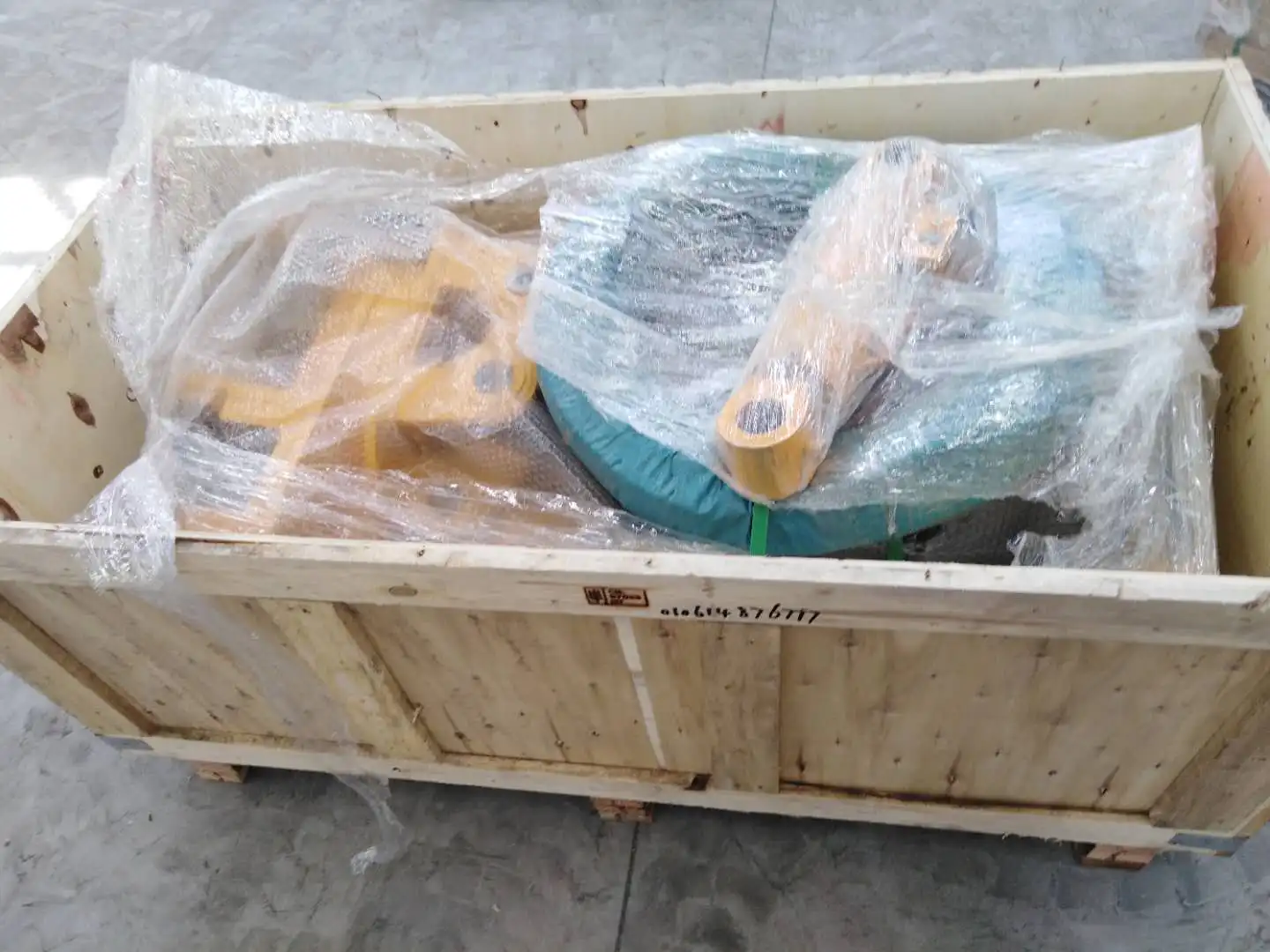

Packing & Shipping

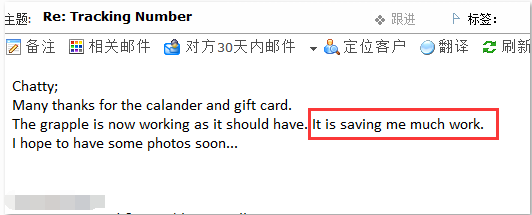

Feedback
