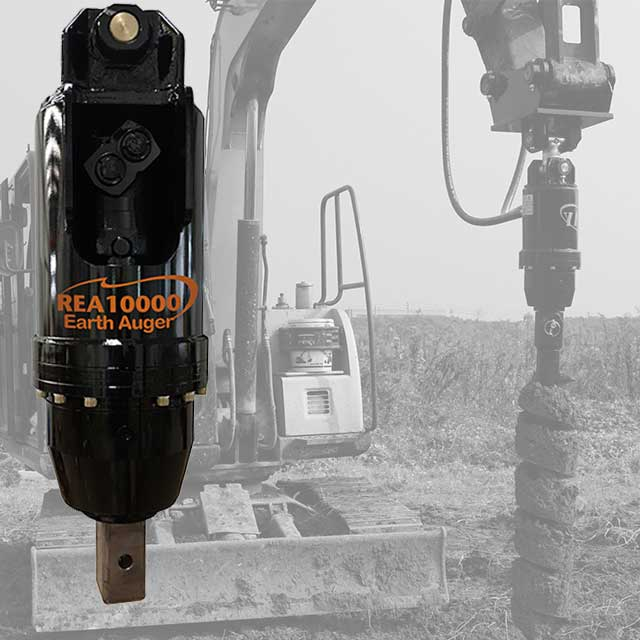

REA10000 Excavator Earth Auger

The gear box is made by ourselves with high precision, low noise, less worn out so have a long service life.
Rock bit is like cone shape, with sharp rock teeth, it has strong drilling and it 's easy to dig into the ground, suitable for some hard soil, such as frozen soil and hard soil.
For the tungsten bit, it is like a fish tail shape, and the tungsten teeth are flat, and easy to move earth. It is suitable for some relatively soft soil, such as loess, clay, backfill and so on.
  • REA10000

  • RAY ATTACHMENTS

Availability:

Drilling machine

earth auger spare parts01earth auger spare parts02earth auger spare parts03earth auger spare parts04earth auger spare parts05earth auger spare parts06

Auger Drills/Earth Auger Specification

The efficiency mainly refers to the rotating speed whicj according to the oil flow of the excavator. Different working conditions and the proficiency of operators also affect it .

We have a client who can dig 1,500 holes in a day. His excavator is 6 tons with 350mm diameter and 500mm depth.  And There is also a customers use 7 ton excavator with diameter 700mm & depth 1.8m, just 100 holes within 8 hours.

REA Auger Drive Specification
Model Unit REA2000 REA2500 REA3000 REA3500 REA4500 REA5000 REA5500 REA6000 REA7000 REA8000 REA10000 REA12000 REA15000 REA20000 REA25000 REA50000
Carrier T 1~2.5 1.5~3 2~3.5 2.5~4.5 3~5 4.5~7 5~7 6~8 7~10 8~12 10~13 13~17 13~17 13~20 15~23 21~50
Torque N.m ≤1871 ≤2432 ≤2877 ≤3614 ≤4218 ≤5056 ≤5910 ≤6150 ≤6931 ≤8048 ≤10778 ≤11976 ≤15046 ≤19039 ≤24949 ≤50195
Pressure Bar 205 205 240 240 240 240 240 240 240 240 240 240 240 240 250 280
Oil Flow Range l/min 23~53 30~61 30~61 30~68 38~76 38~76 45~83 45~106 61~121 61~136 70~136 80~140 80~151 80~170 90~180 100-280
Rotary Speed rpm 40~92 40~82 40~81 32~72 32~64 29~58 28~50 34~80 37~72 29~64 26~45 22~43 20~39 17~34 16~30 11~30
Hydraulic Hose Inch  1/2  1/2  1/2  1/2  1/2  1/2  1/2  3/4  3/4  3/4  3/4 1 1 1 1 1 1/2
Output Shaft mm Ф65  Ф65  Ф65  Ф65  Ф65  □75  □75  □75  □75  □75  □75  □75  □75  □75  □75  □110
Unit Weight Kg 54 54 71 71 71 108 108 110 112 115 167 167 167 185 185 480
Unit  Height mm 595 595 700 700 700 780 780 850 850 850 930 930 930 930 930 14320
Unit Max.Dia. mm 200 200 244 244 244 269 269 269 269 269 290 290 290 290 290 450
Auger Series mm S4 S4 S4 S4 S4 S5 S5 S5 S5 S5 S6 S6 S6 S6 S6 PA
Auger Length mm 1200 1200 1200 1200 1200 1500 1500 1500 1500 1500 1750 1750 1750 1750 1750 2300
Auger dia. Range mm 100~400 100~500 100~600 100~750 100~900 150~600 150~750 150~900 150~900 150~900 150~900 150~900 150~1200 150~1200 150~1200 300-2400

Auger Drills/Earth Auge Parts

The drill blade and length can be customized. And we can also manufacture with your drawing.

Tungsten Type:
It fit to clay, snady land or a little gravel.Digging the soil land very easily.
Teeth Locking system: Keep the teeth never fall down.(Patent Number:201520425163.4)

Rock Type:

It fit to rock, pitch or a lot of gravel land.Harder than tungsten type.

Raymond Auger suit for Clay, Sand, Soil Land, Decomposed rock Type, Gravel Type, Asphalt and so on.

Contact us to know more about the parameter.

auger-parts

Auger Drills/Earth Auger Produce

Auger-Drills-Produce

Auger Drills/Earth Auger Application

Skid steer loader auger

earth-drills-application

Auger Drills/Earth Auger Quality Assurance

1.We provide 18 months warranty for the whole auger drive (but you should follow the correct operation as shown in the operation manual); As we known, some suppliers just offer 12 months, even 6 months warranty, and only for motors. The gear box is made by ourselves with high precision, low noise, less worn out so have a long service life.

2.We use Eaton motor from the USA, and the quality of it is relatively stable. Well, the current motor failure rate is 0.2% only.

Support for customized services

The drill blade and length can be customized. And we can also manufacture with your drawing.

Auger Drills/Earth Auger Video

Auger Drills/Earth Auger FAQ

1.Q:In which condition, auger will craze?

A:Wrong operation will lead auger crazing. Auger should be vertical to the earth when operation. Big type auger drive has reinforcement measure to protect auger.

2.Q:Will the screw blade drop out?

A:No, we haven’t met this condition so far.

3.Q:What’s the gear box used for in the auger drive?

A:The planetary gear is used for transmission. Gear box is used for slowing down the speed of motor.

4.Q:In which condition, earth auger can work most efficient?

A:Efficiency depends on rotate speed. Rotate speed depends on oil flow. Oil flow depends on the excavator pump.

5.Q:In common earth condition, how many holes can be dig in 1 min?

A:Different earth condition has different answer. It depends on the oil flow and pressure, whether the earth loose. For example, it takes 30s to dig a dia 300, depth 1.5m hole in loose earth.

6.Q:How long should change the auger teeth?

A:It depends on the earth condition and working time. According to customers’ feedback, it would be 6 months in loose earth and 1-3 moths in soil with small stones.

7.Q:What’s the space between two screw blade?

A:It depends on the auger type and the outer diameter.

8.Q:What’s the material of screw blade?

A:Q345 alloy steel.

9.Q:Why the output shaft of REA2000-4500 is round, and REA5000-25000 is square?

A:Large type of auger drive has bigger torque. Square output shaft can increase the friction and hard to slide.

10.Q:In which condition, the auger drive won’s work.

A:The hose was not connected correctly. The excavator problem. The motor problem.

11.Q:How about the warranty?

A:We provide 18 month warranty for our auger drive.(Under the correct operation)

12.Q:How many teeth does S4,S5,S6 auger have?  According to diameter of the auger?

A:Yes, according to the auger’s diameter.

13.Q:Why don’t fully weld between screw blade and auger?

A:Because fully weld will make the auger deformation.

14.Q:Will the teeth holder be deformed.

A:It will be worn but won’t be deformed.

15.Q:What’s the material of the teeth and what’s the technology?

A:The material is tungsten and the technology is forged.

16.Q:How many oil seal does a auger drive have. How long should change the oil seal?

A:4 oil seal. It don’t need to change in general.

17.Q:Oil seal must be changed by manufacture? Or customers can change it by themselves?

A:All the oil seal are normal. You can change it by yourself.

18.Q:Why do the auger drive leak oil?

A:There may be some problems of oil seal.

19.Q:What kind of machine can auger drive be installed?

A:Excavator, crane and skip steer loader.

20.Q:What’s the material of the pin hitch?

A:Q345.

21.Q:Why the thickness of screw blade is different? What’s the thickness of central pole? Why the thickness of central pole is different?

A:Because of different type, big torque will make the auger broker.

The thickness of central pole: S4 6mm, S5 8mm, S6 12mm.

22.Q:Why don’t make auger longer, a 2-3m long?

A:We can do this, but it may not be lift up.
