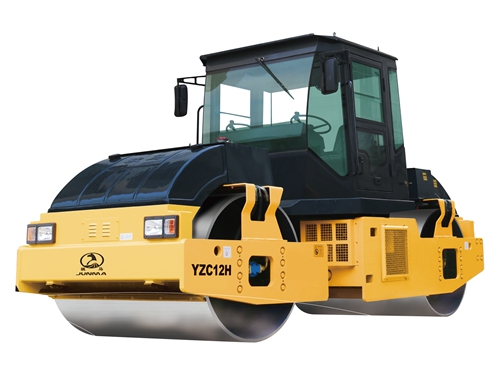

2-12 Ton Double Drum Vibratory Roller / Vibratory Oscillatory Road Roller
parameter
| Model | YZC2 | YZC3 | YZC4 | YZDC4 | YZC6 | YZDC6 | YZC12 | YZDC12 |
Operating Weight (kg) | 2000 | 3000 | 4000 | 4100 | 6000 | 6100 | 12000 | 12150 |
| Rolling width (mm) | 850 | 1000 | 1300 | 1300 | 1320 | 1320 | 1700 | 1700 |
Vibration/oscillation frequency (Hz) | 50 | 50 | 50 | 50 | 42 | 42 | 45 | 45 |
Theoretical amplitude of vibration/ oscillation (mm) | 0.5 | 0.58 | 0.5 | 0.5/0.35 | 0.62 | 0.62/0.6 | 0.7/0.45 | 0.7/0.82 |
Exciting force/ Exciting torque (kN/ kN.m) | 20 | 35 | 40 | 40/13 | 60 | 60/21 | 120/85 | 120/36 |
| Travel speed (km/h) | 2.0/5.6 | 2.0/5.6 | 2.5/7.5 | 2.5/7.5 | 2.5/7.5 | 2.5/7.5 | 2.5/5/8.5 | 2.5/5/8.5 |
| Engine model | Changchai ZN390B | ZN390B | ZN490B | ZN490B | 4L68 | 4L68 | QSB3.9-C100-31 | QSB3.9- C100-31 |
Engine power/ speed (kw/rpm) | 26.5/2400 | 26.5/2400 | 36/2600 | 36/2600 | 36.8/2400 | 36.8/2400 | 74/2400 | 74/2400 |
Overall dimensions (mm)(L*W*H) | 2660× 1060× 2350 | 3020× 1320× 2465 | 3180× 1460× 2560 | 3180× 1460× 2560 | 3660× 1550× 2630 | 3660× 1550× 2630 | 4880× 1980× 2800 | 4880× 1980× 2800 |
