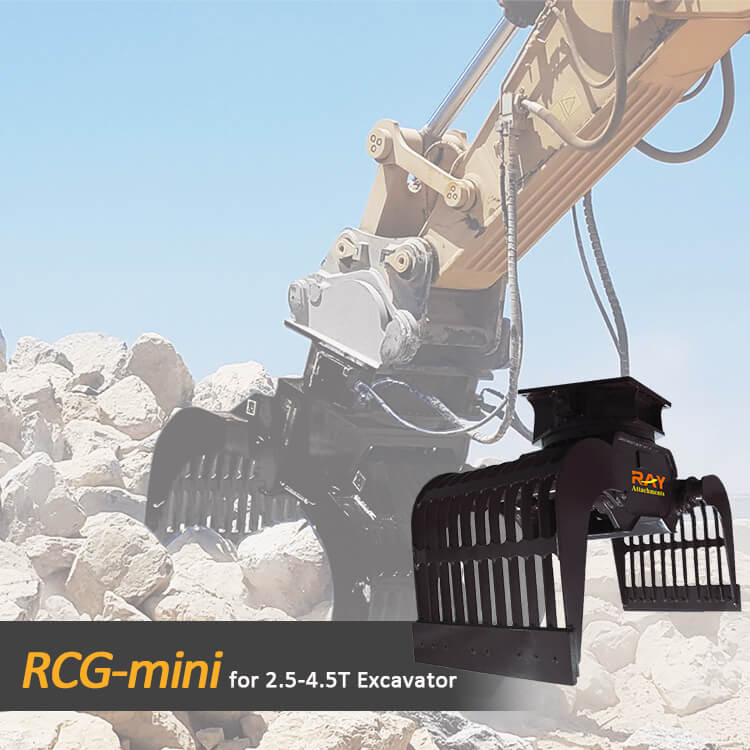

2.5-4.5T Excavator Sorting Grab Metal Scrap Hydraulic Stone Rotating Demolition Grapple RCG-mini

RCG-mini can be applied to some lighter demolition tasks, such as the demolition of brick and wood structures.
  • RCG-mini

  • RAY ATTACHMENTS

Availability:

Demolition Grapple RCG-mini Products Description

Demolition grab are a versatile tool for the selective demolition sorting and reclamation of varied materials. They are widely used in the demolition industry for primary stripping works and then subsequent clearance of sites, they are also a useful partner for the sorting and selection of skip and green waste and are used extensively at waste transfer and sorting yards.

Demolition Grapple RCG-mini Specification

Model Unit RCG-mini RCG-02 RCG-04 RCG-06A RCG-06B RCG-08 RCG-10 RCG-14
Carrier Ton 2.5-4.5 4-6 6-8 10-15 15-18 18-21 22-27 28-37
Cylinder Bar 250 300 350 350 350 350 350 350
Liters/min 8-15 10-20 15-30 30-65 40-80 55-110 55-110 95-165
360° Rotation Bar 100 100 100 140 140 140 140 140
Liters/min 6-9 8-12 8-12 12-20 12-20 14-20 14-20 28-40
Tr/min 10/15 10/15 10/15 10/15 10/15 10/15 10/15 10/15
Force N 12000 19000 25000 40000 50000 60000 62000 93000
A mm 1090 1180 1290 1710 1845 2000 2100 2270
B mm 770 850 960 1245 1375 1440 1465 1630
C mm 770 840 910 905 1000 1050 1190 1275
D mm 760 850 930 1080 1100 1290 1375 1425
L mm 400 460 550 800 900 1010 1130 1210
Volume L 77 105 147 395 470 700 820 1080
Weight Kg 210 260 370 745 950 1230 1500 2100

Demolition Grapple RCG-mini Details Images

1) Parker motor.

2) Interchangeability of machines is easy due to bolt-on adaptation plate.

3) Hydraulic rotation 360° in 2 directions to ease precise and fast positioning of the tool, with pressure control valve.

4) 1 or 2 cylinders give strong power on cutting edges for demolition.

5) Sturdy housing made of steel – high elastic with bolts.

6) Large capacity.

7) Cutting edges and Shell of Hardox for long life. Opening up to 90°.
