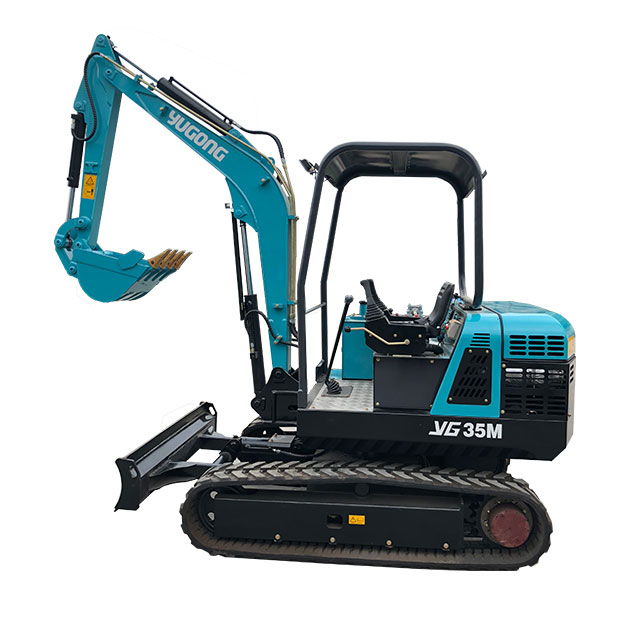

RAY&YG35M Mini Excavator

  • YG35M
  • YG&RAY

Item Brand Item Parameter

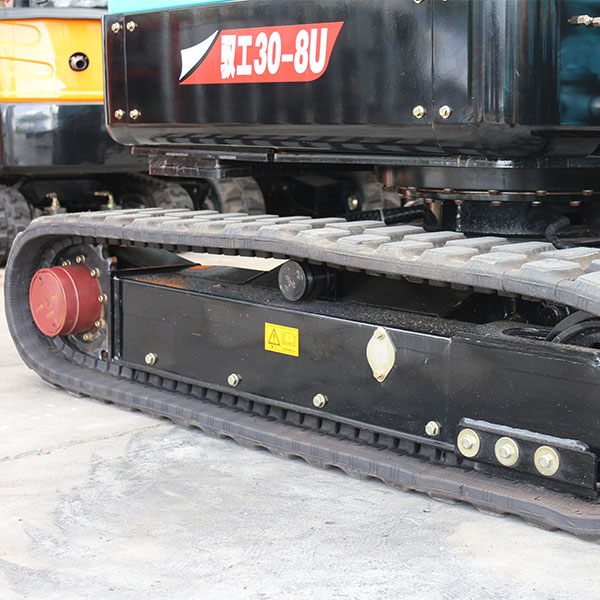

Traveling motor Plunger walking motor Engine power 20.7kw/2200rpm
Swing motor NACHI Working pressure 18MPa

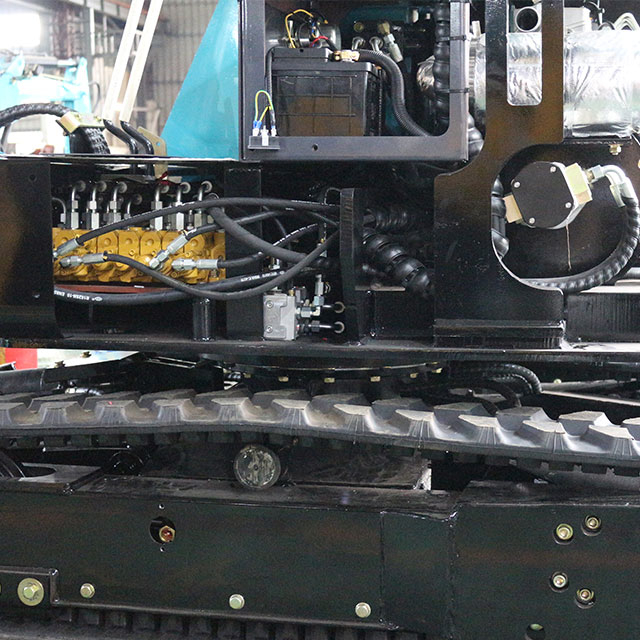

Multiplex valve Load Sensitive Multiplex Valve Flow rate 2x30.8 Variable+13.2L/min Gear Pump
Oil pump CASAPPA plunger pumpLoad Maximum excavation force 26KN
Cylinder Famous Domestic Brands Max. Gradeability 30°
Engine Perkins Diesel Engine Grounding specific voltage 30Kpa

Bucket digging force 28KN
Max.travel speedhigh/low Max: 4.5Km/h Min: 2.7Km/h
Swing speed 13rpm

Dimension  Unit: mm Operating range Unit: mm
A: Length 4700 A:Max. Digging height 4700
B: Height 2400 B: Max. Dumping height 3050
C: Chassis width 1550 C:Max. Digging depth 2990
D: Trackband Width 300 D:Max. Digging radius 4900
E: Total length of track 2100 DI: Max. Ground digging distance 4560
F: Wheelbase 1700 E: Mining radius of maximum mining height 3050
G: Counter weight turning radius 1350 F: Min. Rotation radius 2100
H: Height off the ground 300 G: Max. Digging depth of bulldozer blade 290
I: Total height 1600 H: Max. Upgrade height of bulldozer blade 270
J: Platform External Width 1400
K: Height (From seat to ground) 1420
L: Upper chassis ground clearance 620


mini-excavator-drawing


Composition-of-mini-excavatorsmini-excavator-type

Mini-Excavator Test

Motor-brand

Mini-Excavator Application

mini-excavator-application
