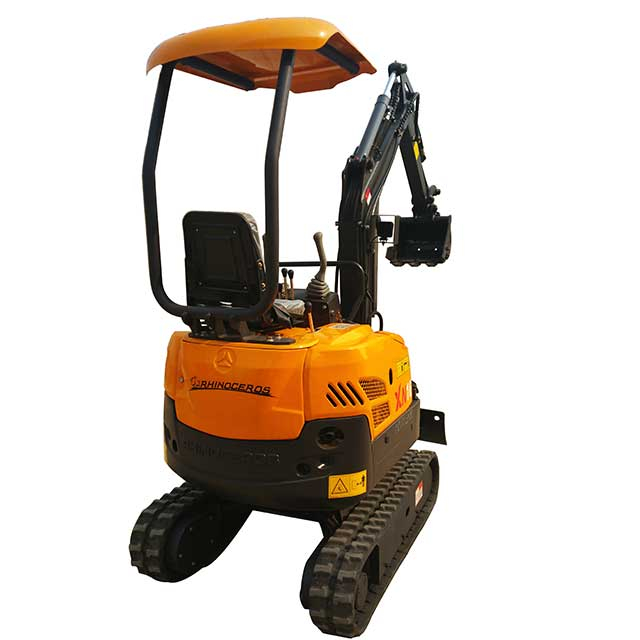

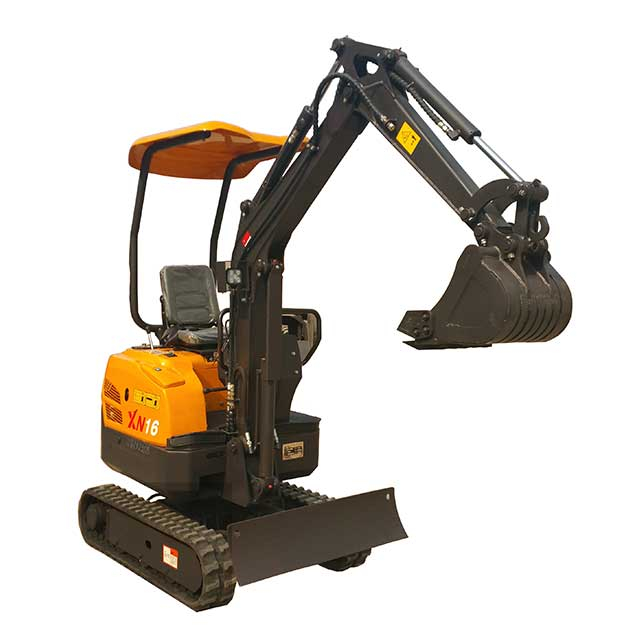

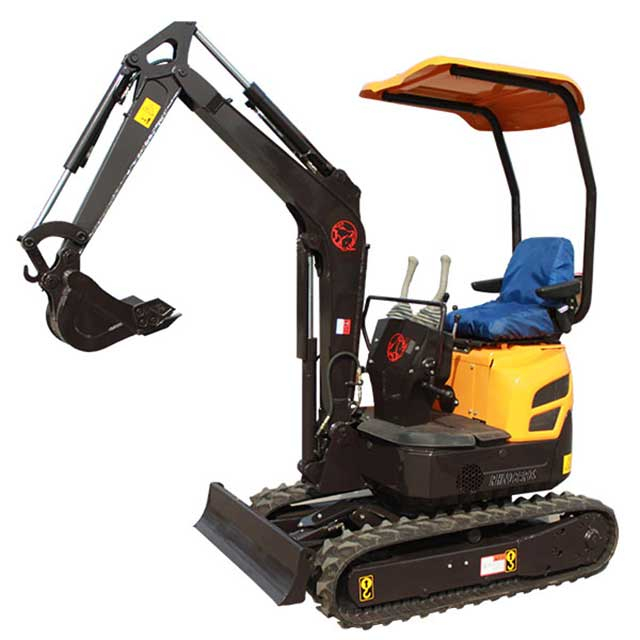

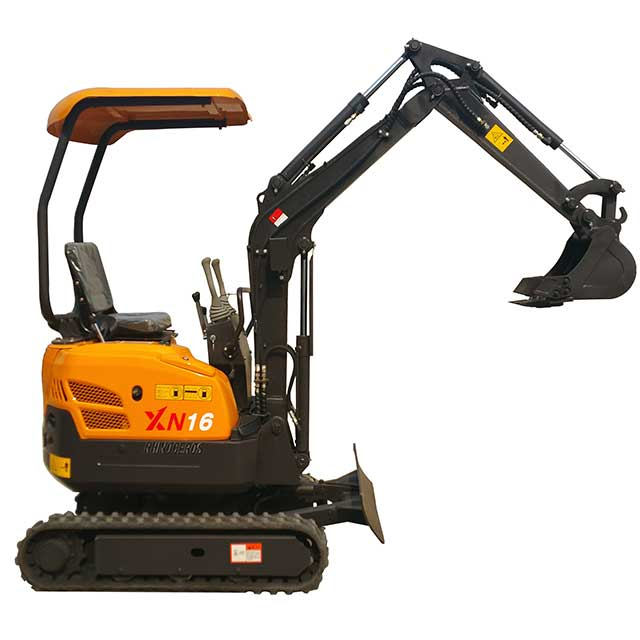

XN16 Mini Excavator

  • 16

  • RAY

Availability:

1.Changchai/Yanmar engine,7.5/10kw,single/three cylinder,air-cooled,national II emission standard

2.0.8T/0.9T ,0.02cbm bucket 1.5km/h,2550x946x1330 mm

3.Max. Digging height:2490mm, Max. Digging depth:1400mm

4.It also can be with,auger gripper,ripper,rake ,500mm Leveling bucket and 200mm Narrow bucket if you'd like

SPECIFICATION Unit
Operating Weight 1400 kg
bucket capacity 0.045m³
Working device form backhoe
engine Model Yanmar 3TNV70/3TNV74F
Displacement 0.854L
Rated power 10kw/2200/r/min / 11.2 kw
Maximum torque 51.9N.m/1600 r/min
Speed/Digging force Max.travel speed 1.5km/h
swing speed 11rpm
Max. Gradeability 30°
Bucket digging force 10.5KN
Bucket arm digging force 6.5KN
Maximum traction 13.5KN
Ground specific pressure 35kgf/cm2
Track material Rubber
Type of track tension device Butter oil cylinder
Hydraulic and liquid capacity Pump type Gear pump
Working pressure 16Mpa
Flow rate 23.3L/min
Hydraulic oil tank capacity 15.3L
Engine fuel tank capacity 2.8(1.3)L
Fuel tank capacity 19L

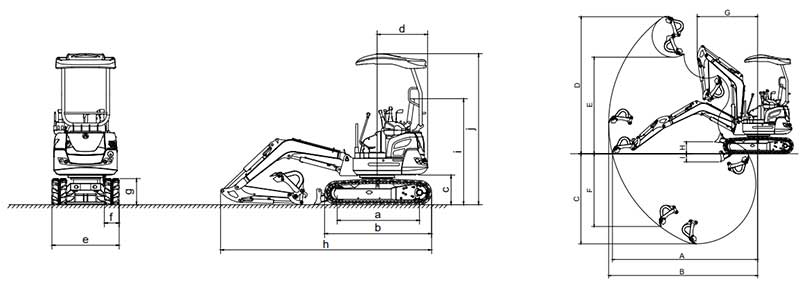

schematic-diagram

Range of working Unitmm
A Max. Digging radius on ground 3470 mm
B Max. Digging radius 3560mm
C Max. Digging depth 2150 mm
D Max. Digging height 3275 mm
E Max. Dumping height 2310 mm
F Max. Vertical digging depth 1740 mm
G Min. Rotation radius 1440 mm

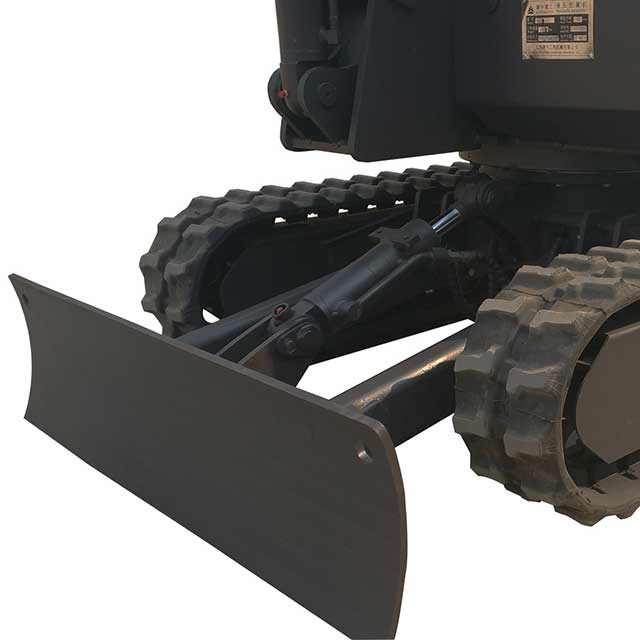

H Max. Upgrade height of bulldozer blade 262mm
I Max. Digging depth of bulldozer blade 192 mm

Overall dimension ( LxWxH) Unit (mm)
a Wheelbase 1130
b Total length of track 1450
c Platform ground clearance 437
d Counterweight turning radius 740
e Chassis width 1110
f Track width 230
g Track height 320
h  Length 3160
i Height (From seat to ground) 1637
j Total height 2377
