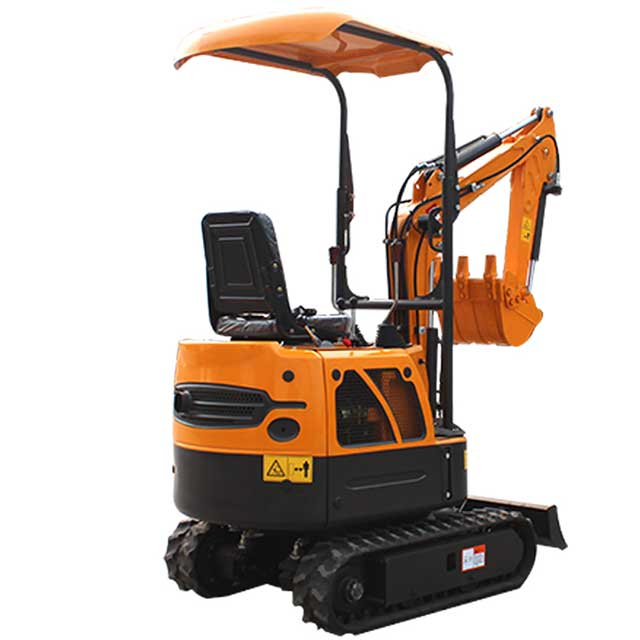

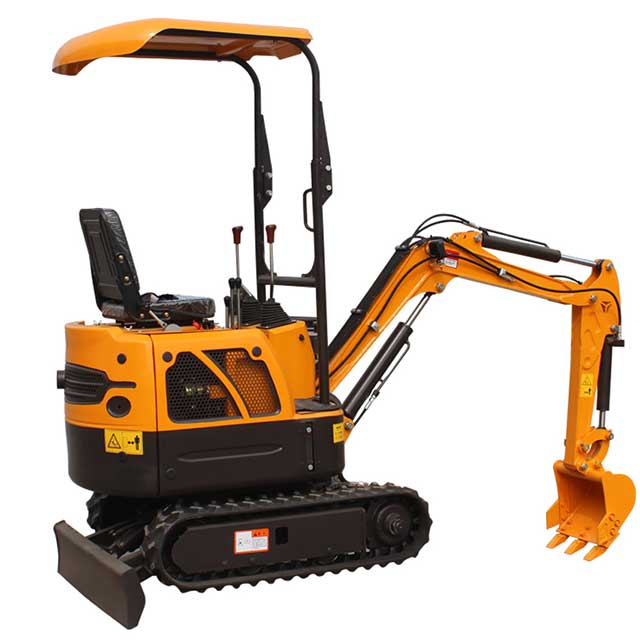

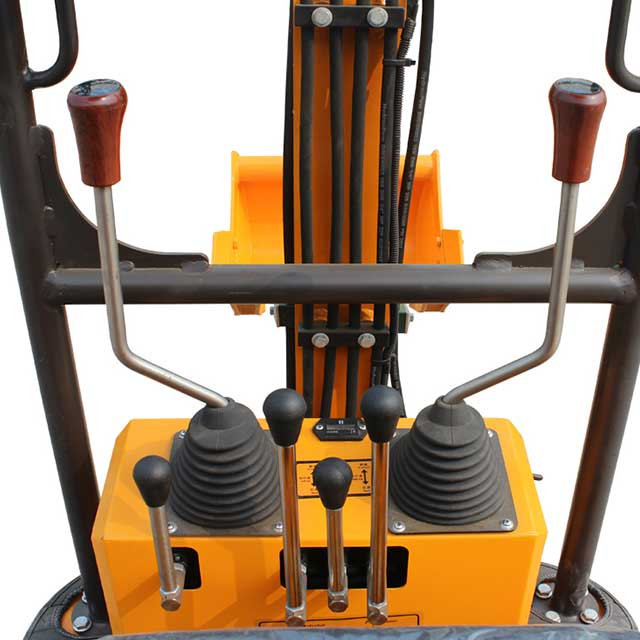

We have two types: Excavator with Mechanical Handle & Excavator with Joystick.
Model | XN08 |
Brand | RAY ATTCHMENTS |
Operating Weight | 880kg /980kg |
Digging bucket capacity | 0.02cbm/100kg |
Bucket width | 380mm |
CHANGCHAI (192FAM)/KOOP /Yanmar | |
Rated power | 7.5 kw/3000r/min/7.6kw/10kw |
0.211 L | |
Bore stroke | 70x55 |
Main pump | CBK-F6.8 |
Displacement | 6.8ml/r |
Swing motor | SJ-TECH (MP-1-160) |
Traveling motor | KERSEN (OMS-2450) |
Travel speed | 1.5km/h |
MAIN DEMENSIONS | |
Overall dimension( LxWxH) | 2550x946x1330 mm |
Wheelbase | 770 mm |
Total length of track | 1090mm |
Upper chassis ground clearance | 380 mm |
Counter weight turning radius | 733 mm |
Chassis width | 946 mm |
Track width | 180 mm |
Track height | 320 mm |
OPERATING RANGE | |
Max. Digging depth | 1400 mm |
Max. Vertical digging depth | 1320 mm |
2490mm | |
Max. Dumping height | 1750 mm |
Max. Digging radius on ground | 2400 mm |
Min. Rotation radius | 1190 mm |
Max. Upgrade height of bulldozer blade | 325 mm |
Max. Digging depth of bulldozer blade | 175 mm |
