Granite Saw Cutter Hydraulic Excavator Rock Saw Attachment for Cutting Rocks

  • RRS02
  • RAY ATTACHMENTS
Availability:
Product Description
Excavator Rock Saws are used in demolition, construction, quarry, and mining. RAY Rock Saws are designed to cut aluminum, asphalt, concrete caliche, ductile iron, granite, limestone, sandstone, steel, and many other materials. We have different blades for these materials and ranging from 250mm through to 1600mm. These blades can be tipped with diamond segments to extend more service life. RAY rock cutting saw easily attaches to your excavator or skid steer in minutes, providing quick and effective rock cutting.
Tree cutting
Reinforced cement cutting
Pavement grooving
Specification
Model
Unit
RRS02
RRS04
RRS06
RRS08
RRS10
Carrier
T
1-3
5-8
10-15
20-35
30-45
Max power
KW
28
57
80
95
155
Pressure
Mpa
35
35
35
28
28
Torque
Nm
140
350
700
1120
1880
Maximum flow rate
L/min
60
125
175
250
265
Minimum flow rate
L/min
40
63
88
120
136
Speed range
rpm
1600-2400
1000-1950
700-1400
470-1000
272-650
Saw blade diameter
mm
400-600
500-1500
800-1800
1200-2000
1800-3500
Cutting depth
mm
≤250
≤600
≤900
≤1200
≤1600
Weight
Kg
100
350
800
1100
1600

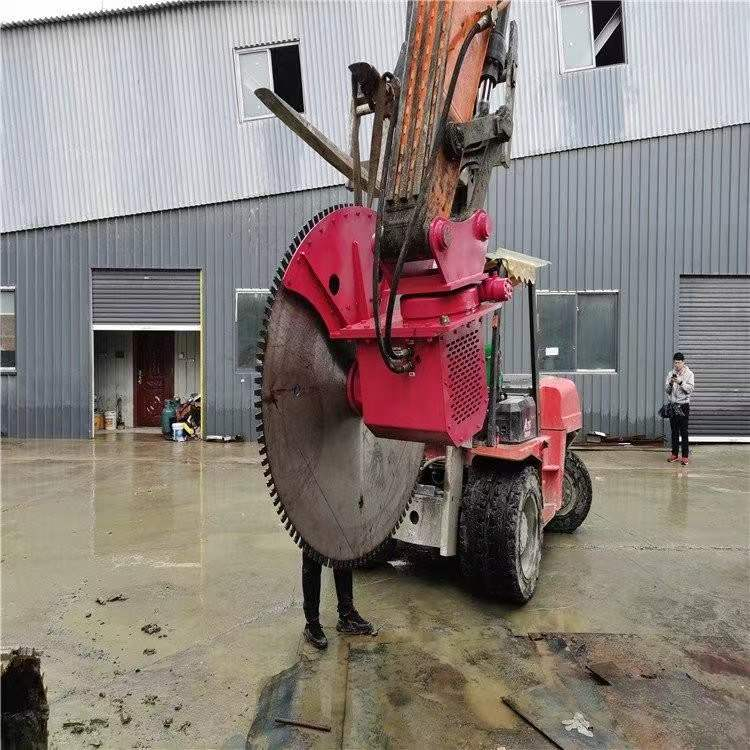

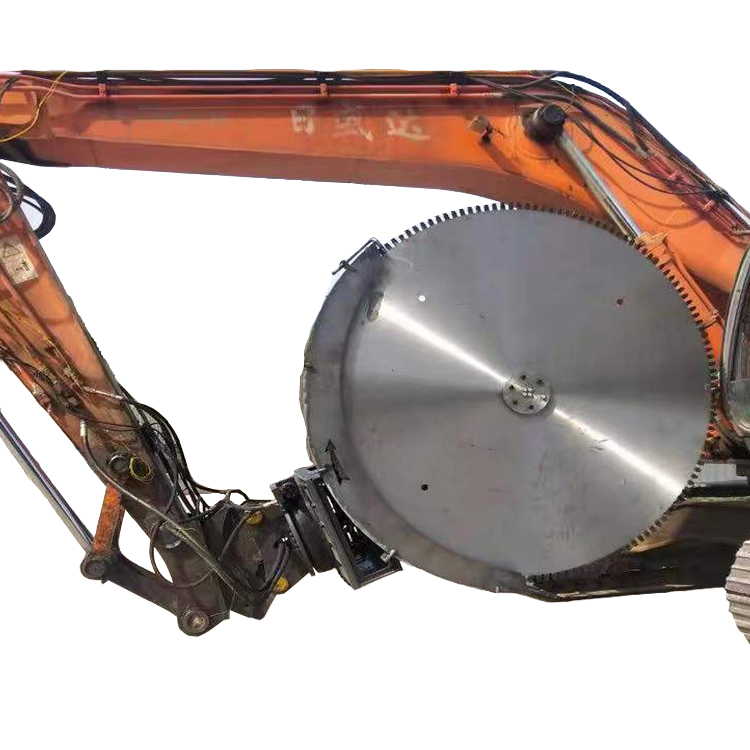

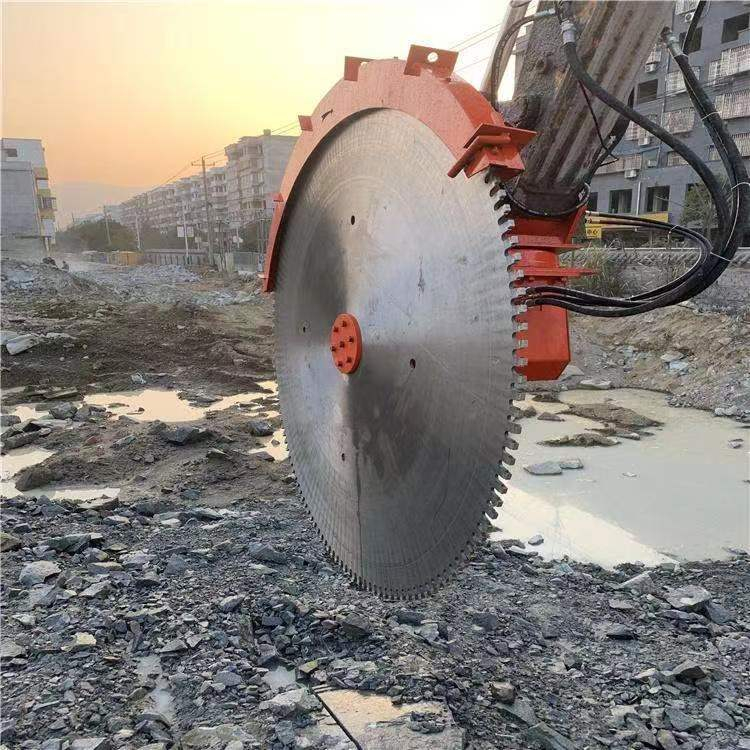

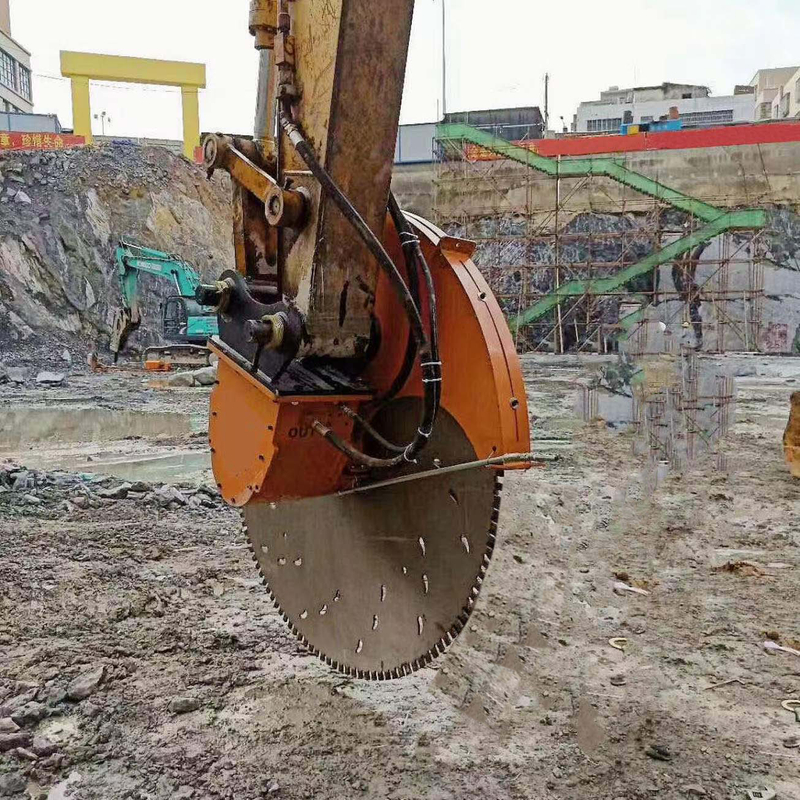

Details Images
Advantage
1. It can be directly installed on the pipeline of the excavator breaker. 2. It is very good to hit the quarry with a breaker after sawing the hard rock, and the cost is low. 3. The application is flexible, and the saw discs of different sizes can be replaced according to the operating environment, or it can be replaced with a tree saw for sawing trees. 4. Can be configured with 360° rotating bracket 5. One year warranty, except for wearing parts
